Product Features

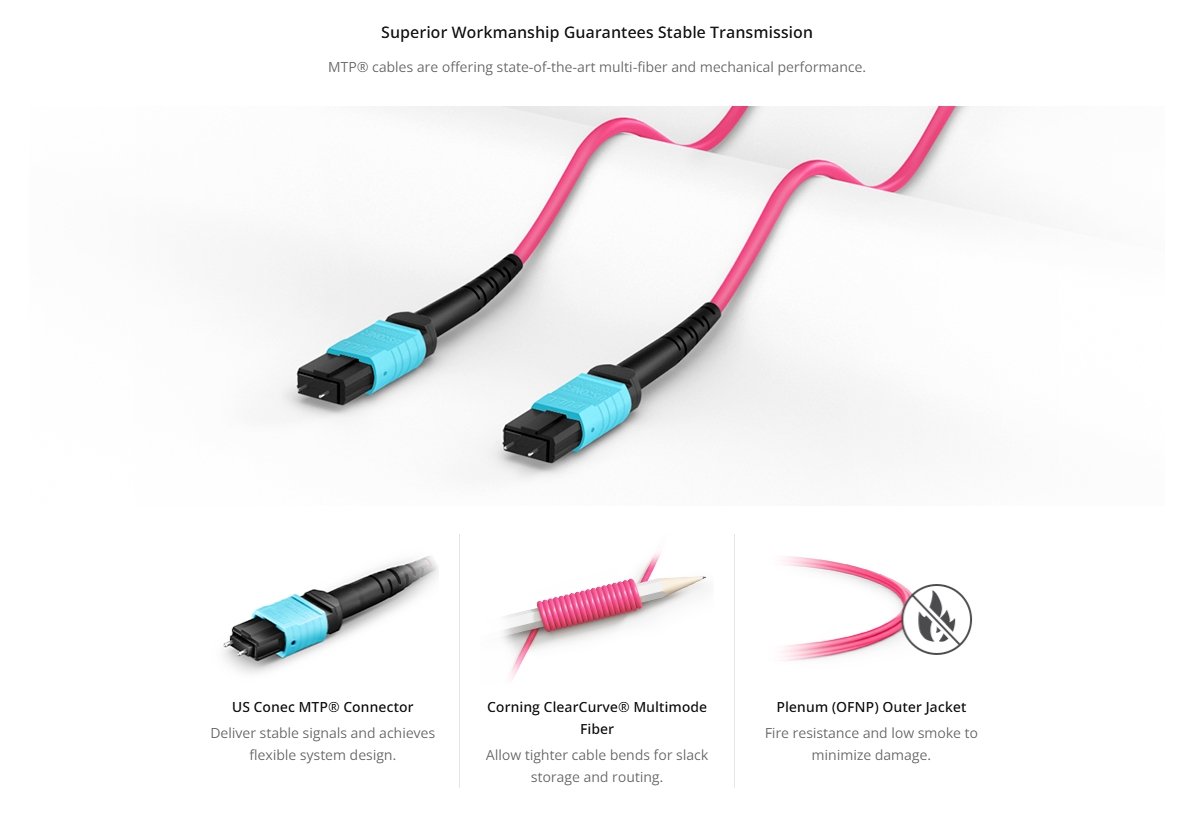

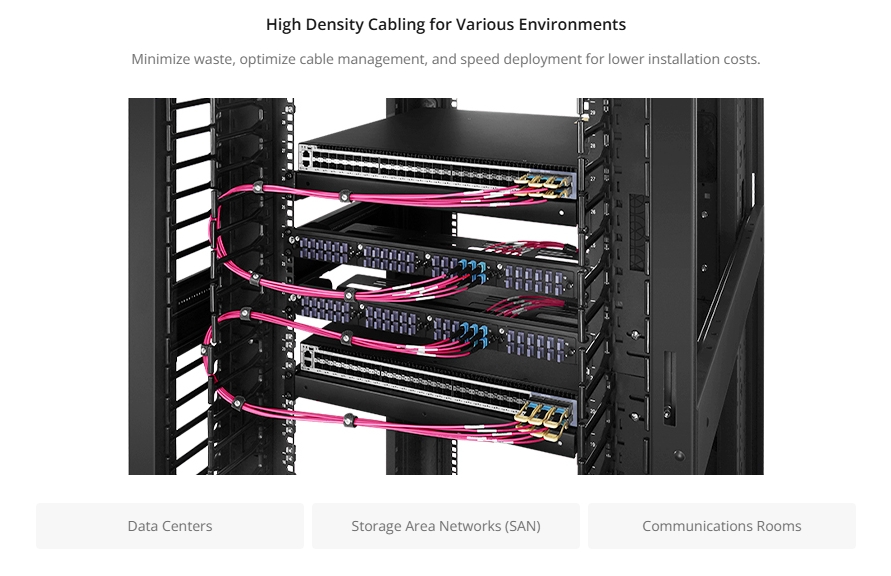

The MTP® trunk cables with a braided tubing jacket are typically designed for a longer cable length in cabinet-to-cabinet applications or for connecting different areas of a building. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management problems.

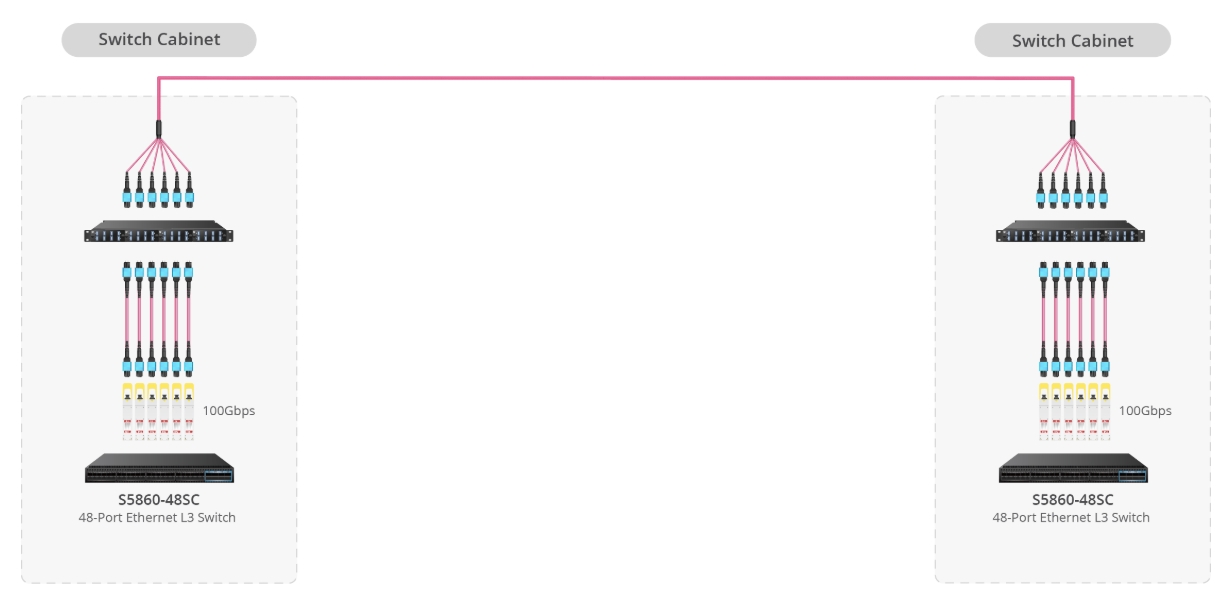

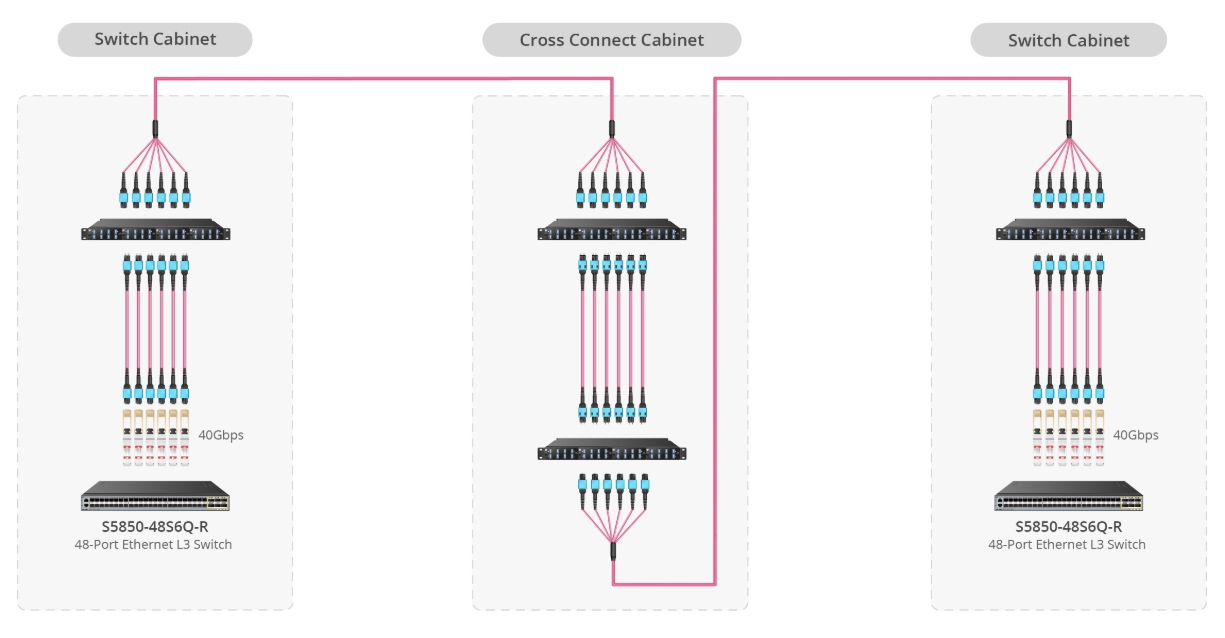

Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is also ideal for 8-fiber parallel multimode optical transceivers applications, such as 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics connection.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specification
| Connector Type |
US Conec MTP® Male Elite (Pinned)
|
Polish Type |
UPC
|
| Fiber Mode | OM4 50/125μm | Wavelength |
850/1300nm
|
| 40/100G Ethernet Distance |
150m at 850nm
|
10G Ethernet Distance | 400m at 850nm |
| Glass Fiber |
Corning ClearCurve® Multimode Fiber
|
Polarity | Type B |
| Fiber Count |
72 Fibers
|
Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max. (0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Breakout Type | 0.5m Equal Breakout | Tensile Strength | 80/240N (Long/Short Term) |
|
Long-term Tensile Load
|
66N | Cable Jacket | Plenum (OFNP) |
| Operating Temperature | -10 to +70°C (14 to 158℉) | Storage Temperature | -40 to +85°C (-40 to 185℉) |
