MTP® conversion cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP® harness cable, MTP® conversion cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 8-fiber cabling system.

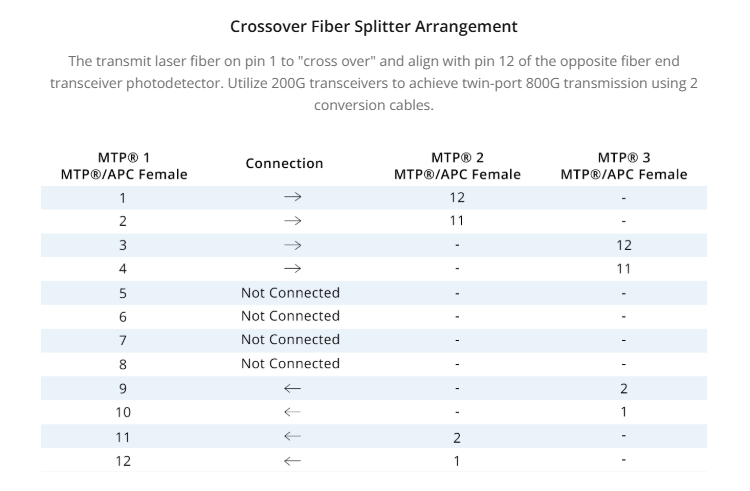

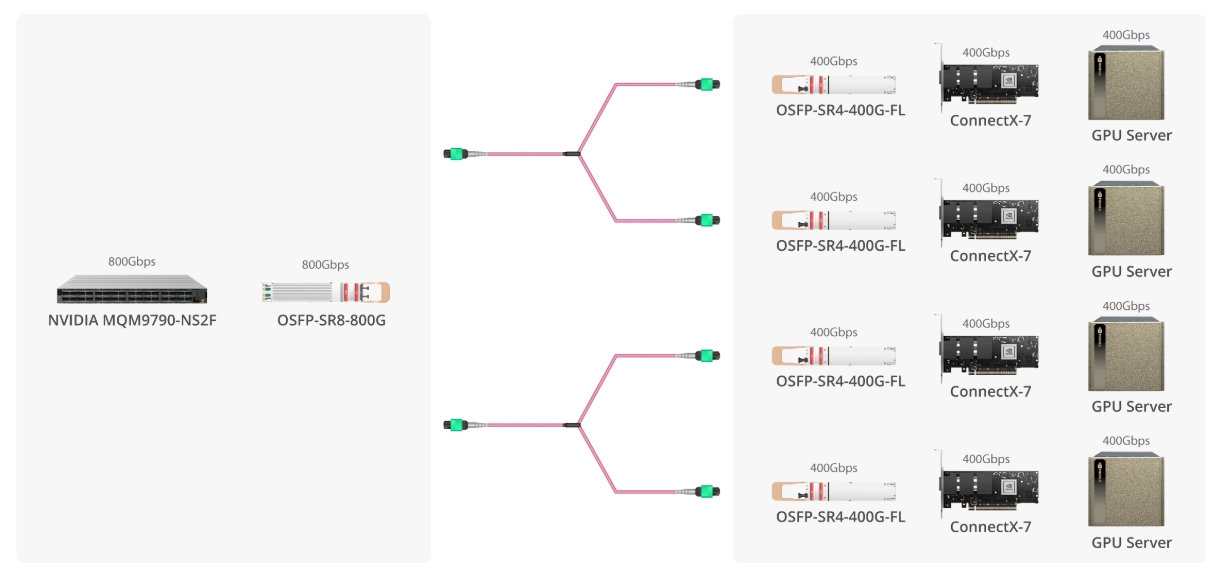

MTP®-12 APC to 2 x MTP®-4 APC conversion harness cable, whose MTP®-12 connectors only use 8 active fibers to transmit light and 4 inactive fibers not connected and MTP®-4 connectors use MTP®-12 only 4 active fibers to transmit light and 8 inactive fibers not connected. Using two MTP®-12 APC to 2 x MTP®-4 APC conversion cables can link an 800G NVIDIA InfiniBand twin-port OSFP transceiver to four 400G NVIDIA InfiniBand OSFP/QSFP112  transceivers. And, only two channels are activated when 400Gb/s transceivers are used with the 1:2 conversion cables, creating a 200Gb/s transceiver. Compared to purchasing and installing separate conversion cassettes, using MTP® conversion cables is more cost-effective and lower-loss.

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
