Product Features

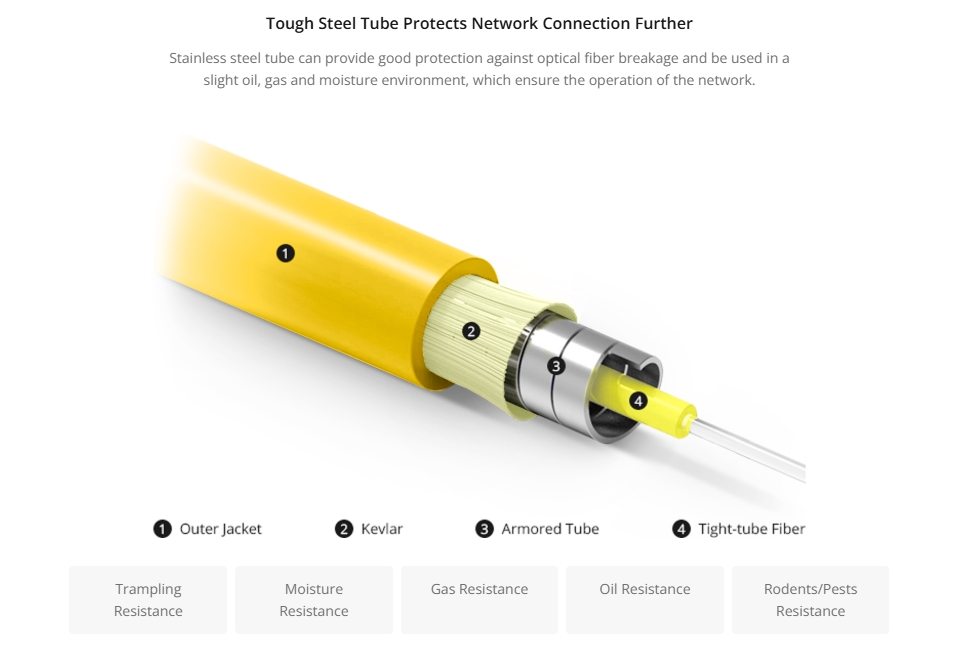

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests.

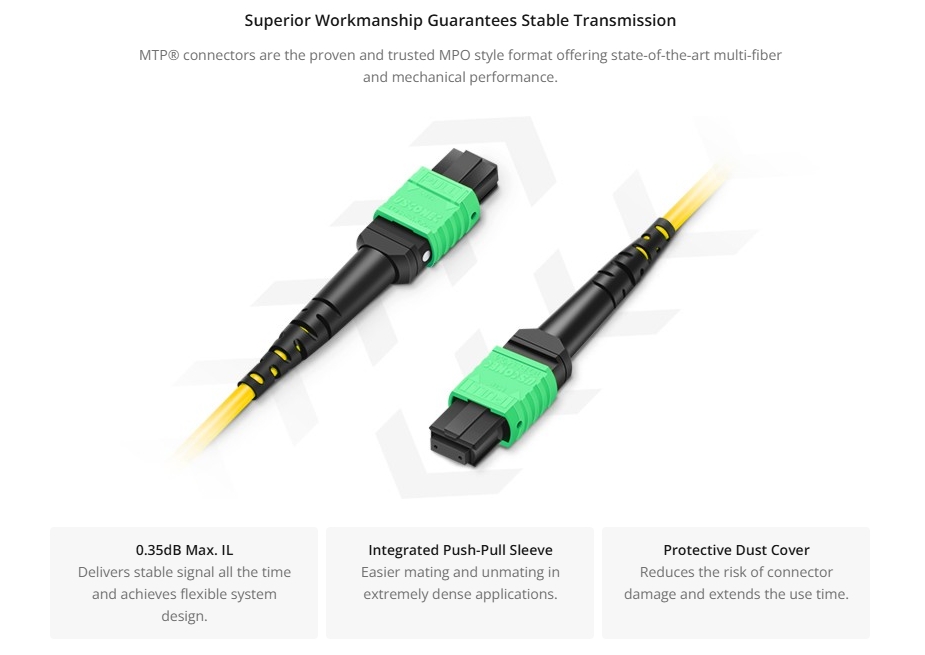

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.This cable is ROHS compliant.
Specification
Connector A | US Conec MTP® Female Elite (Pinless) | Connector B | US Conec MTP® Female Elite (Pinless) |
Polish Type | APC to APC | Fiber Grade |
G.657.A1
|
Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |

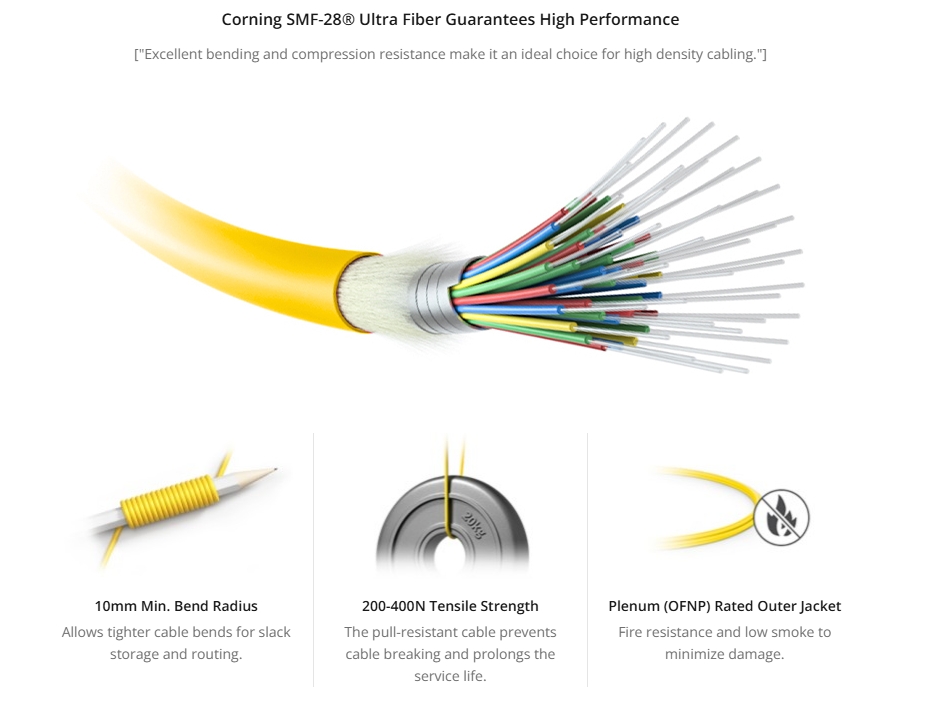

Fiber Count | 12 Fibers | Minimum Bend Radius | 10mm |
Cable Outside Diameter (OD) | 6.0mm | Cable Jacket | Plenum (OFNP) |
Connector Fiber Cords Structure | Single Armored, Stainless Steel Tube | Tensile Strength | 200/400N (Long/Short Term) |
Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
Attenuation at 850 nm | ≤0.36dB/km | Attenuation at 1550 nm | ≤0.22dB/km |
Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
