Product Features
MTP® conversion cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP® harness cable, MTP® conversion cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 12-fiber cabling system.

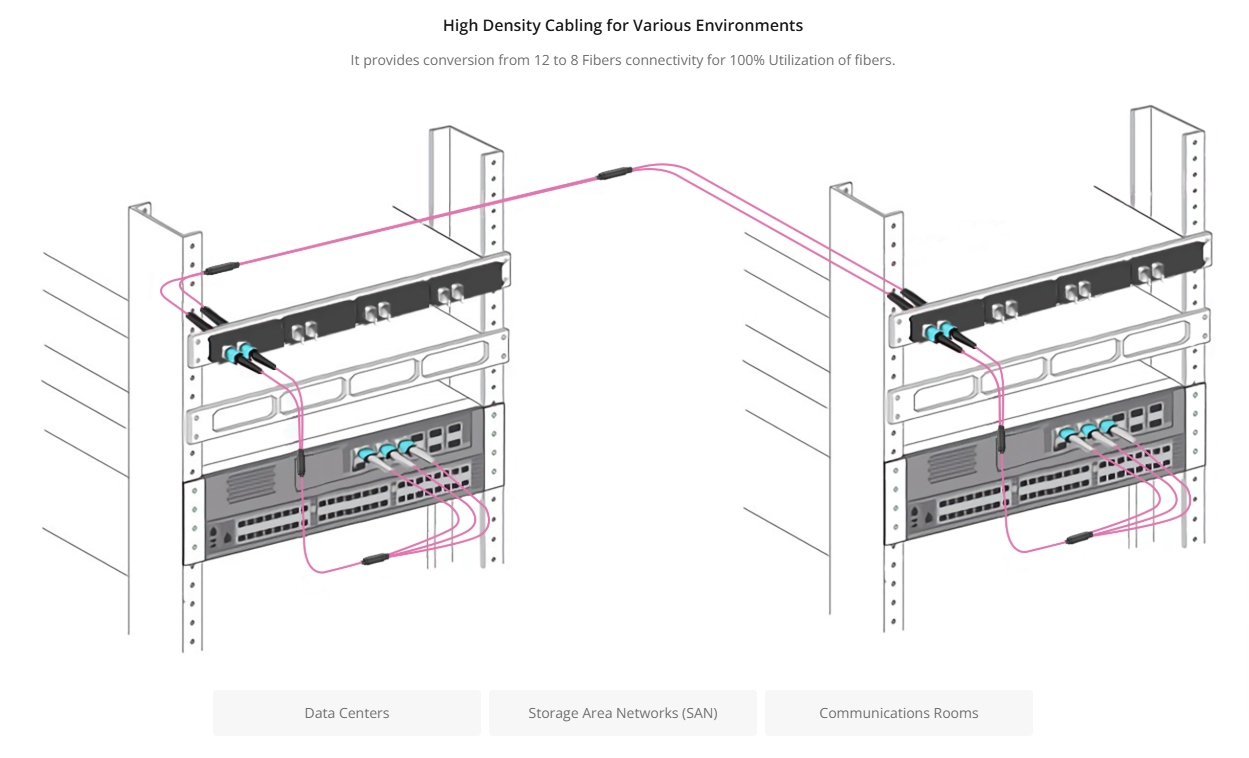

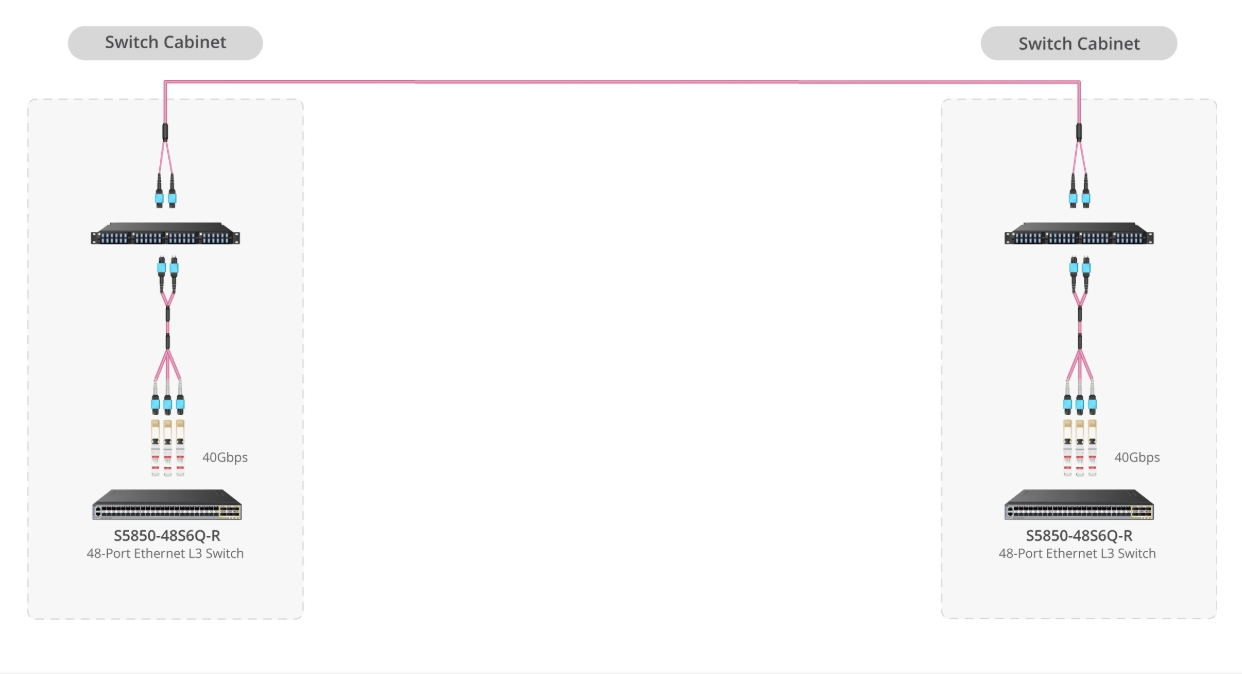

The 40/100G MTP® conversion cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate conversion cassettes, using MTP® conversion cables is a more cost-effective and lower-loss option.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specification
| Connector A | US Conec MTP® Female Elite (Pinless) | Connector B | US Conec MTP® Female Elite (Pinless) |
| Polish Type | UPC to UPC | Glass Fiber |

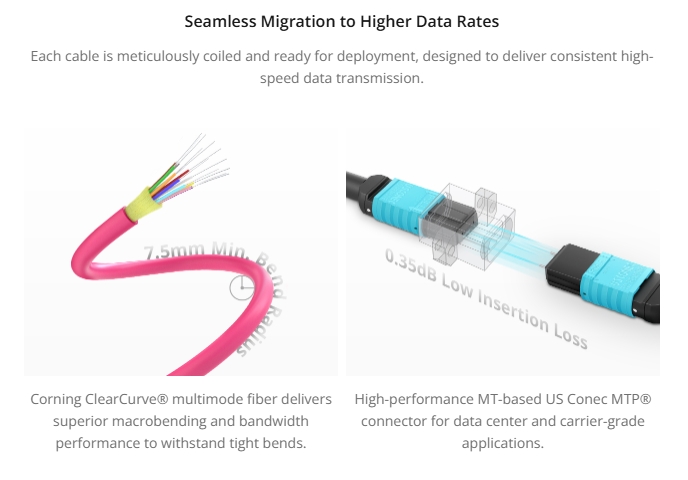

Corning ClearCurve® Multimode Fiber
|
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 24 Fibers | Polarity |
Type A |

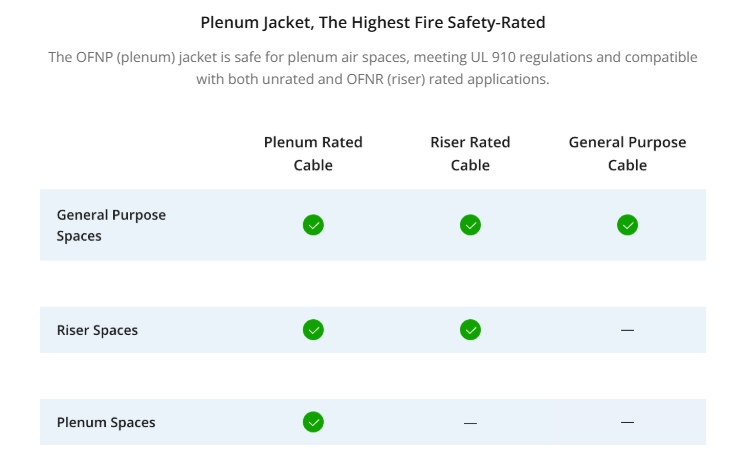

| Cable Outside Diameter (OD) | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 500 times | Tensile Strength | 90/180N (Long/Short Term) |
| Insertion Loss | 0.35dB Max (MTP®-12) 0.25dB Max (MTP®-8) |
Return Loss | ≥20dB |
| Attenuation at 1310 nm | ≤3.5dB/km | Attenuation at 1300 nm | ≤1.5dB/km |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
