Product Features

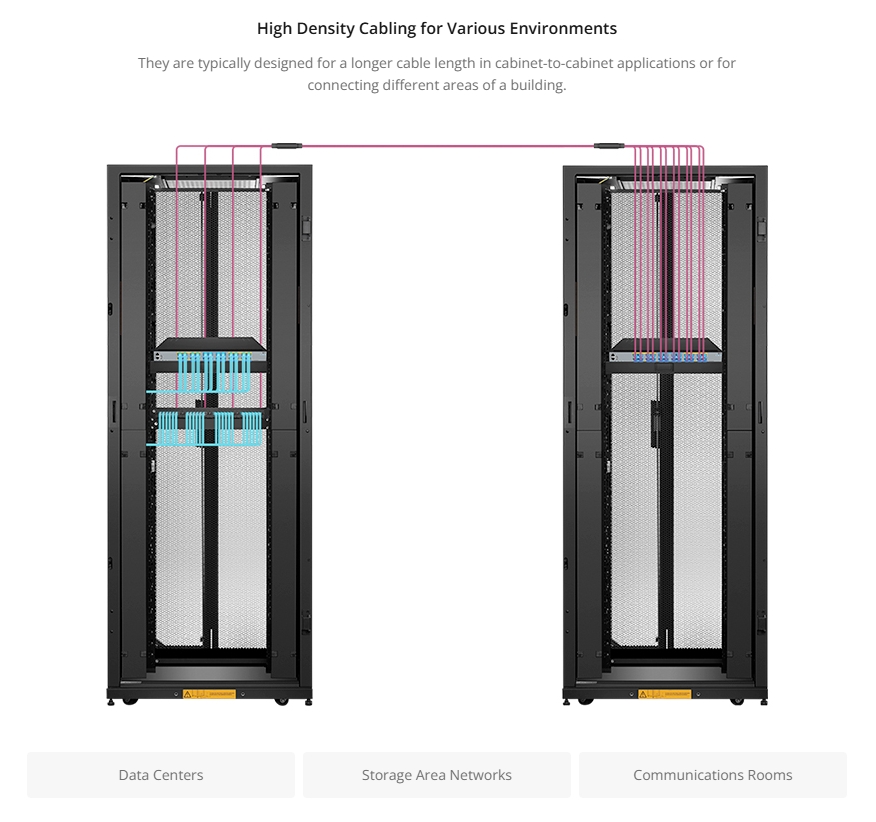

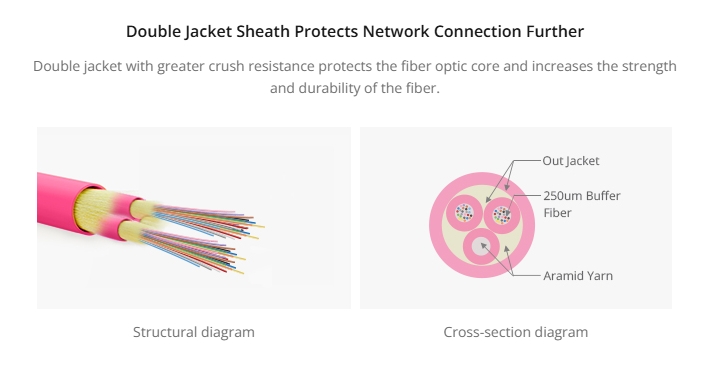

MTP® trunk cables with a more robust double jacket sheath provide greater crush resistance. They are typically designed for a longer cable length in cabinet-to-cabinet applications or for connecting different areas of a building. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management problems.

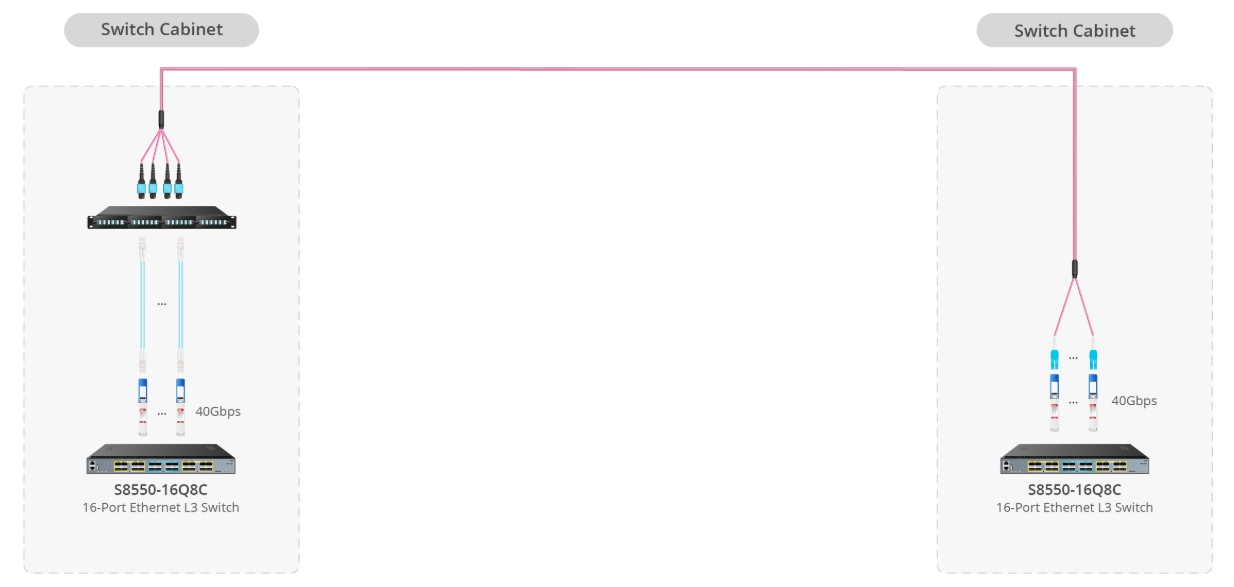

Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics connection and high-density data center applications.

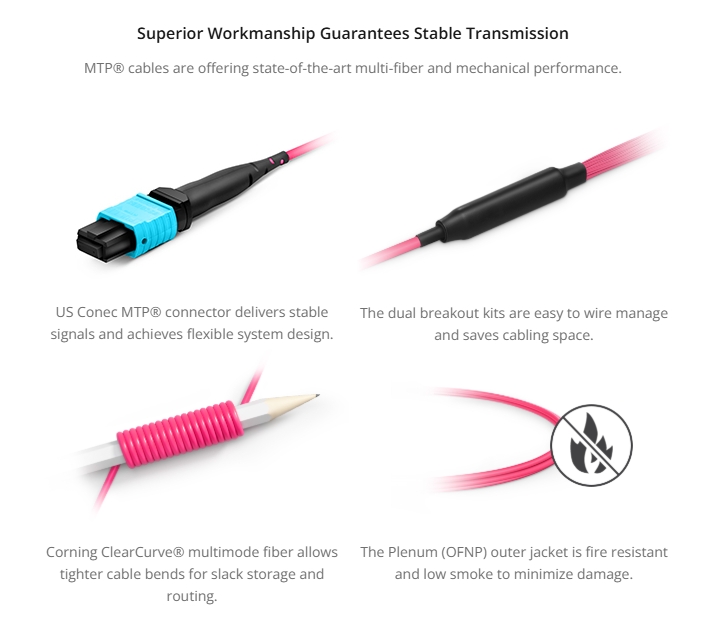

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specification
| Connector A |
US Conec MTP® Female Elite (Pinless)
|
Connector B |
LC UPC Uniboot (Duplex)
|
| Fiber Mode | OM4 50/125μm | Wavelength |
850/1300nm
|
| Glass Fiber |
Corning ClearCurve® Multimode Fiber
|
Fiber Grade |
Bend Insensitive
|
| MTP Connector IL | 0.25dB Max | Fiber Count | 48 Fibers |
| MTP Connector RL | ≥65dB | LC Connector IL | ≤0.15dB |
| MTP Connector Count | 4 | LC Connector RL | ≥55dB |
| Attenuation at 1310nm | ≤3.5dB/km | Attenuation at 1300nm | ≤1.5dB/km |
| Cable Jacket | Plenum (OFNP) | Cable Structure | 660N |
| Cable Outside Diameter (OD) | 8.5-9.0mm | Breakout Outside Diameter (OD) | 2.0mm |
|
Long-term Tensile Load
|
200N | LC Connector Count | 24 |
| Operating Temperature | -10 to +60°C (32 to 140℉) | Storage Temperature | -10 to +70°C (14 to 158℉) |
