Product Features

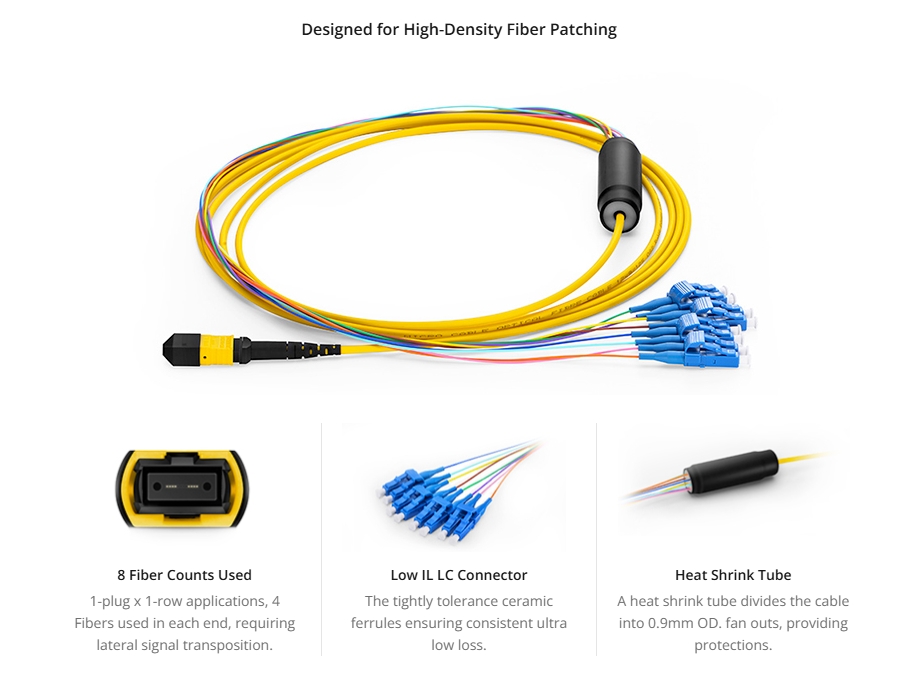

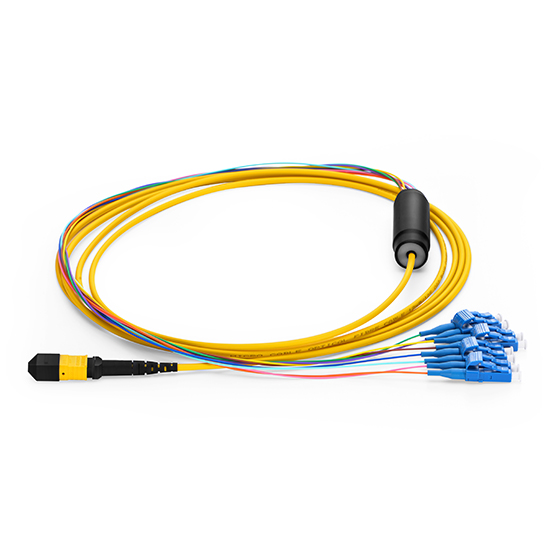

The MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
MTP®-8 is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics connection and high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specification

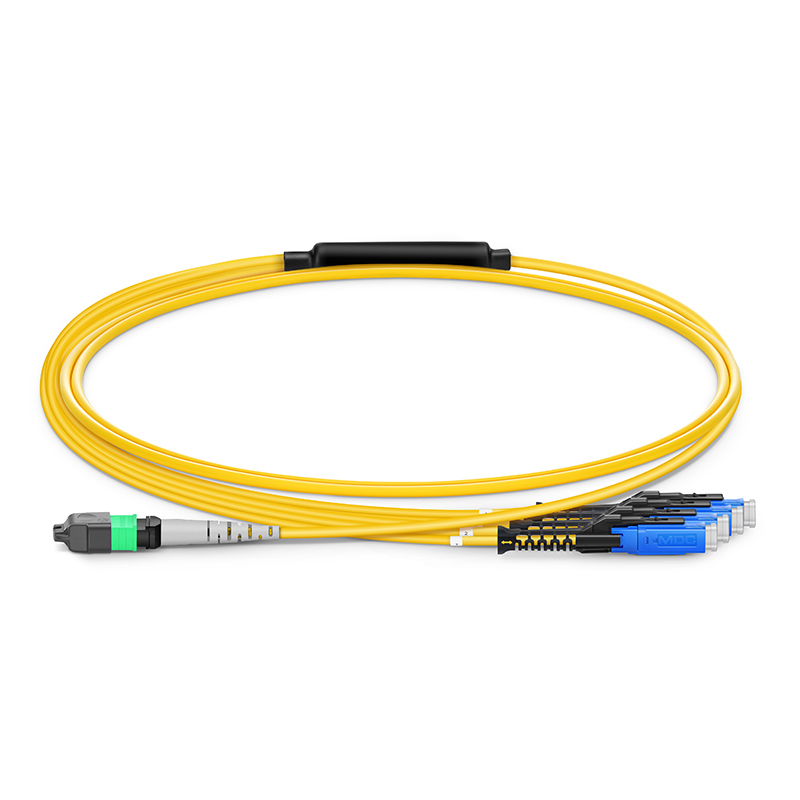

| Connector A | US Conec MTP® Female Elite (Pinless) | Connector B | US Conec MDC UPC |
| Fiber Mode | OS2 9/125μm | Wavelength |
1310/1550nm
|
| Glass Fiber | Corning SMF-28® Ultra Fiber | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) | LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥60dB | LC Connector RL | ≥50dB |
| Cable Jacket | LSZH | Fiber Count | 8 Fibers |
| Cable Outside Diameter (OD) | 3.0mm | Breakout Outside Diameter (OD) | 0.9mm |
| Installation Tensile Load | 66N | Tensile Strength | 80/240N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -20 to 70°C (14 to 158℉) |
