Product Features

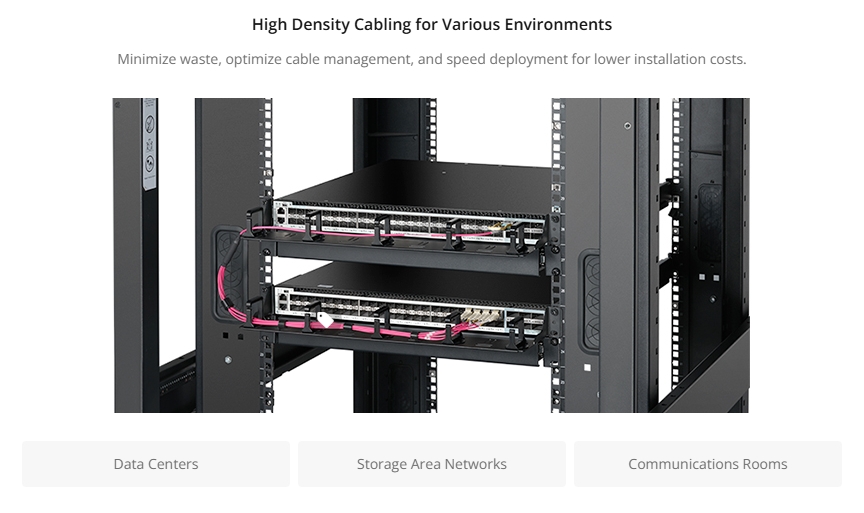

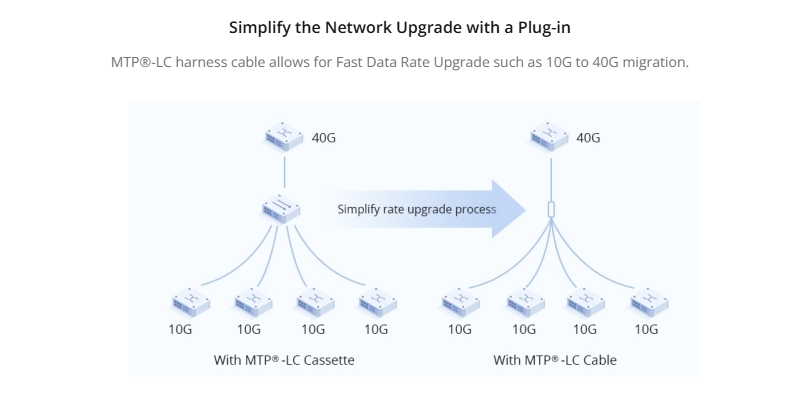

The MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

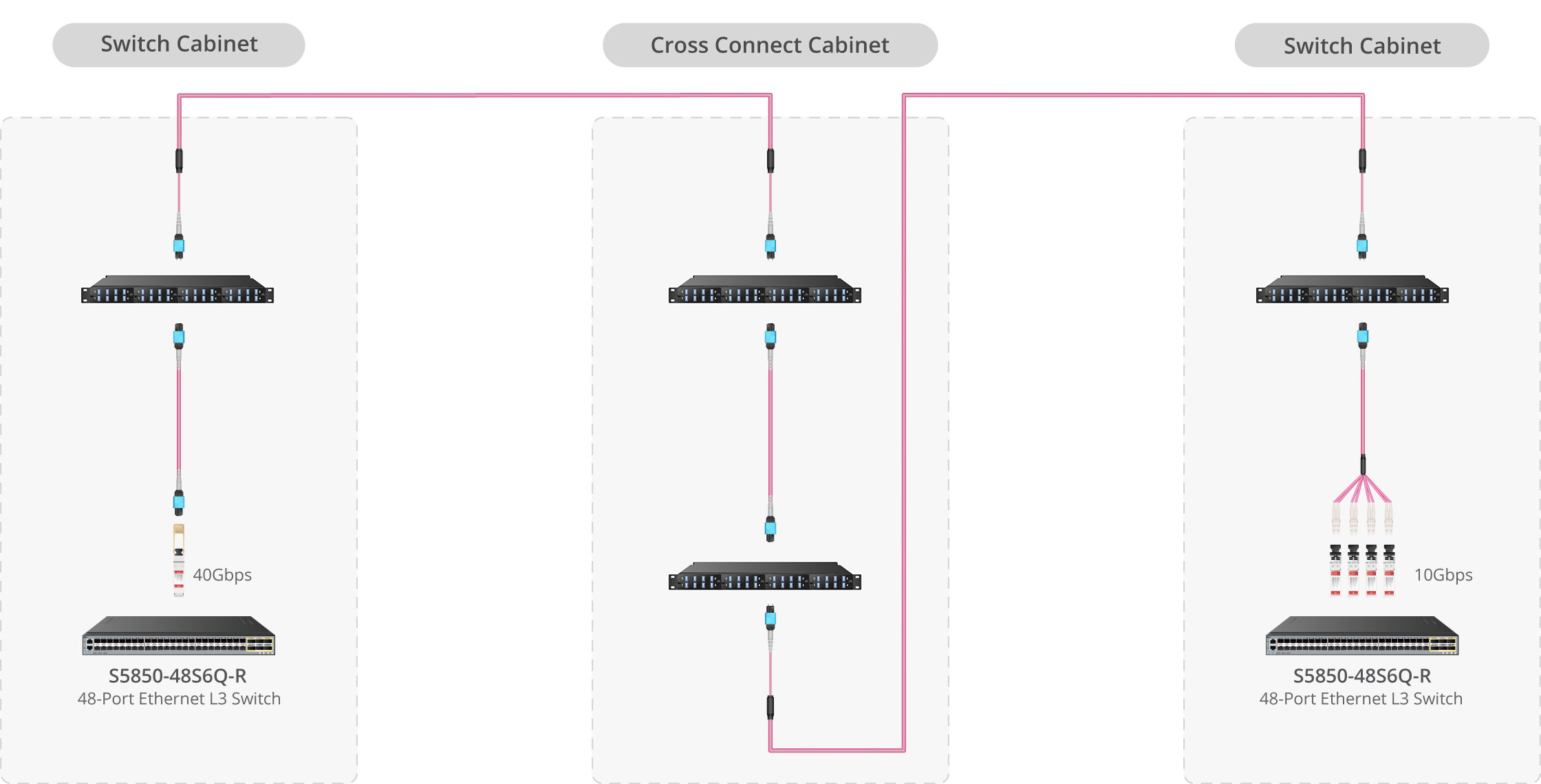

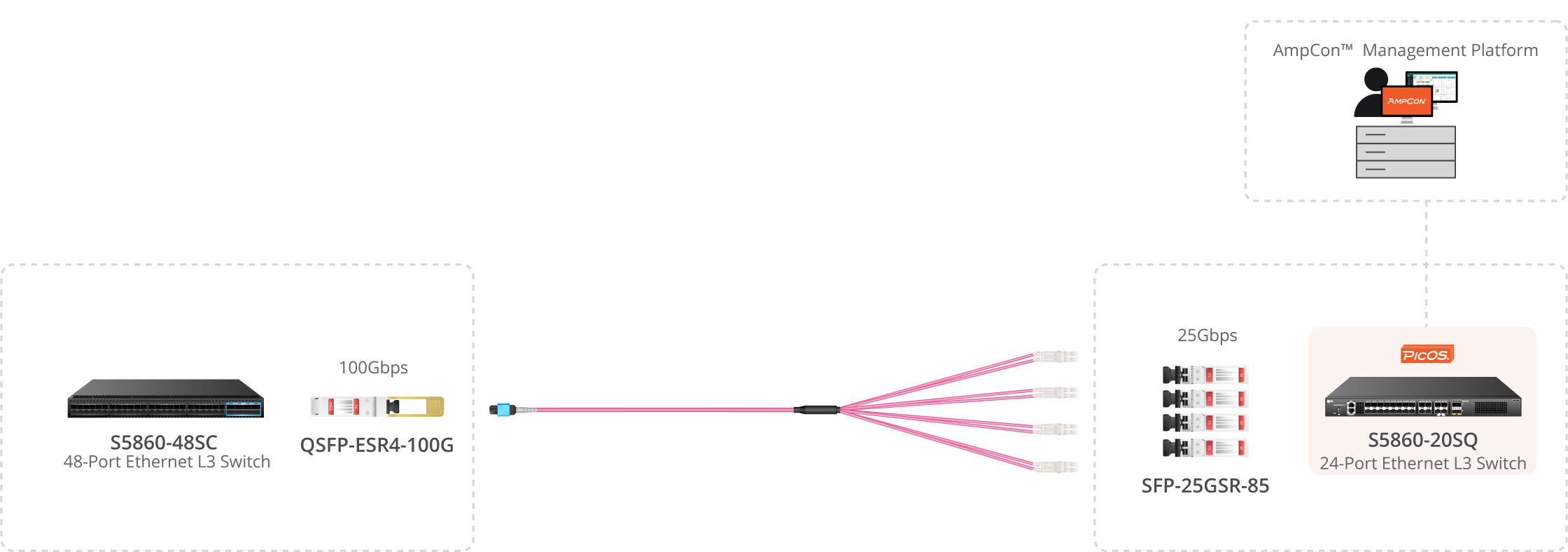

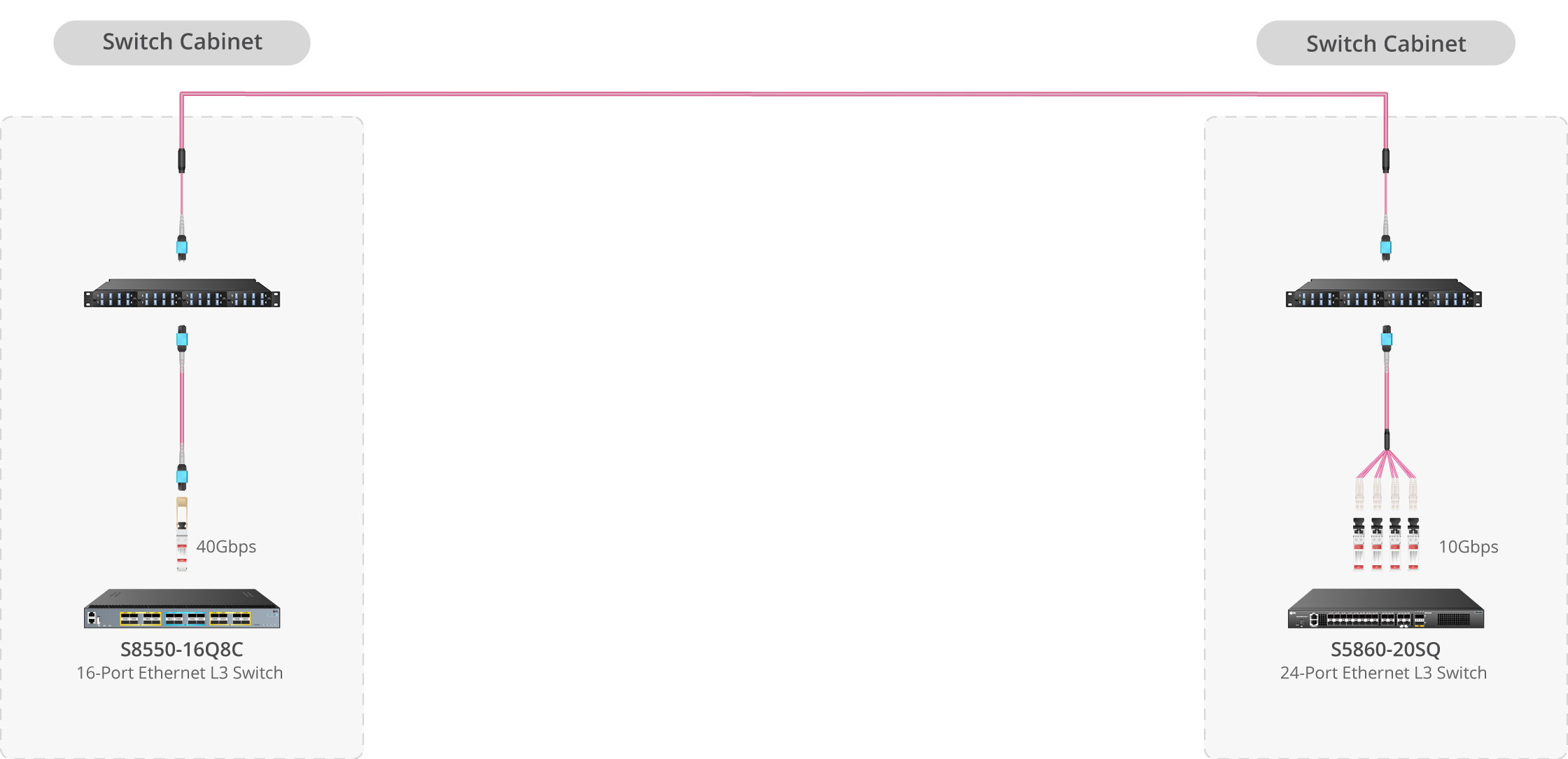

MTP®-8 is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics connection and high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specification
| Connector A | US Conec MTP® Female Elite (Pinless) | Connector B | LC UPC Duplex |
| Fiber Mode | OM4 50/125μm | Wavelength |
850/1300nm
|
| 40/100G Ethernet Distance | 150m at 850nm | 10G Ethernet Distance | 400m at 850nm |

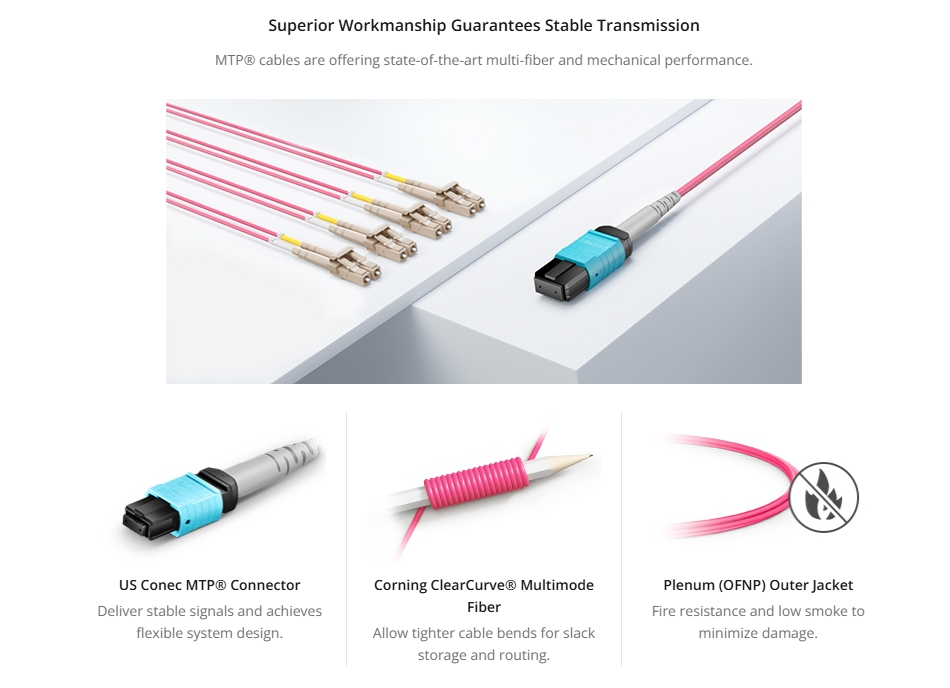

| Glass Fiber | Corning ClearCurve® Multimode Fiber | RoHS Compliancy Status | Compliant |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) | LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥20dB | LC Connector RL | ≥30dB |
| Attenuation at 1310nm | ≤2.3dB/km | Attenuation at 1550nm | ≤0.6dB/km |
| Cable Jacket | Plenum (OFNP) | Fiber Count | 8 Fibers |
| Cable Outside Diameter (OD) | 3.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| Installation Tensile Load | 66N | Tensile Strength | 80/240N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
