Product Features

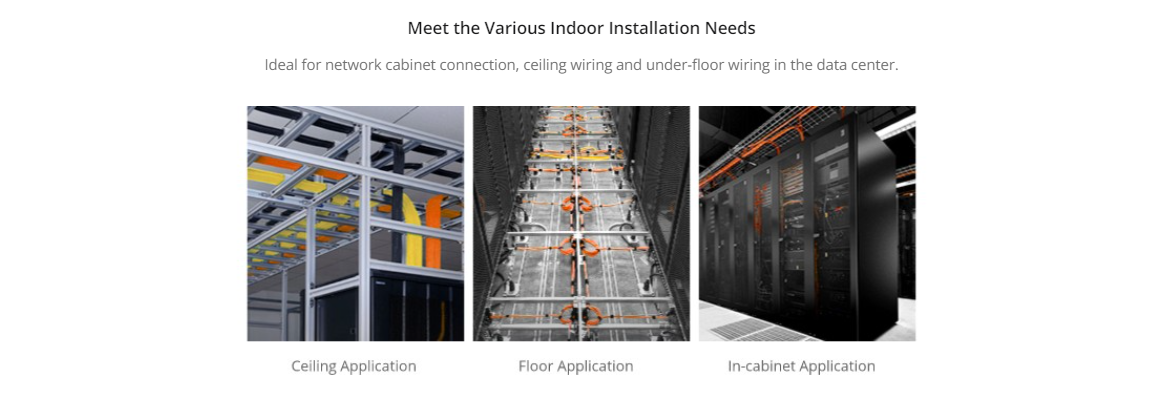

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OM2 fiber patch cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.
Specification
Connector A | LC UPC Duplex | Connector B | ST UPC Duplex |
Fiber Count | 2 Fiber | Fiber Grade |
Bend Insensitive
|

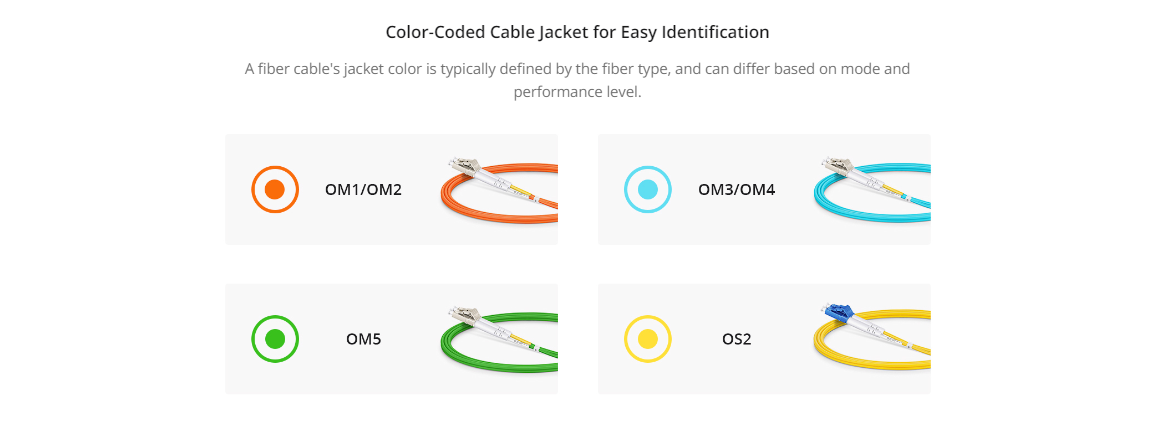

Fiber Mode | OM2 50/125μm | Wavelength | 850/1300nm |

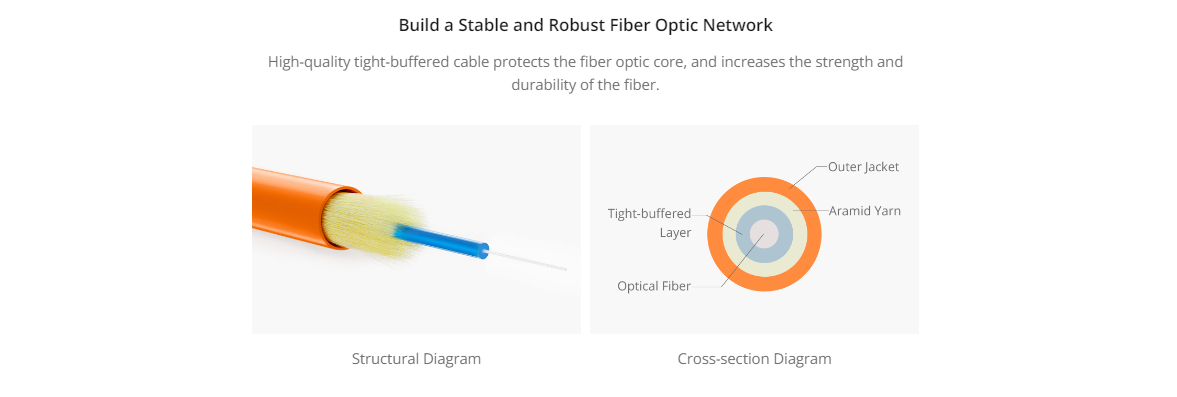

Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
Cable Outside Diameter (OD) | 2.0mm | Cable Jacket | Riser (OFNR) |

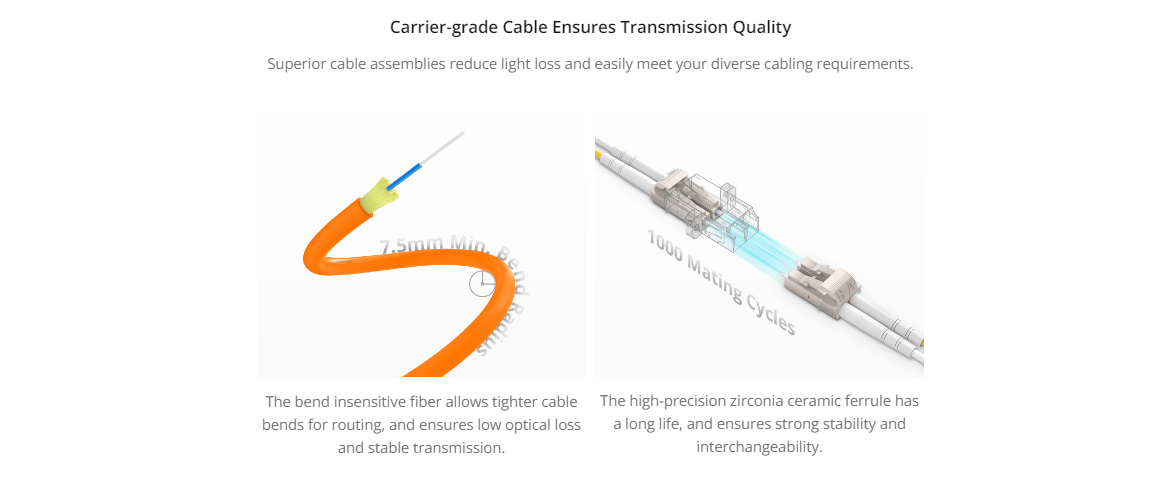

Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 90/150N |
Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
Attenuation at 1310 nm | 3.0dB/km | Attenuation at 1550 nm | 1.0dB/km |
Operating Temperature | -20 to 70°C (-4 to 158℉) | Storage Temperature | -40 to 80°C (-40 to 176℉) |
