Product Features

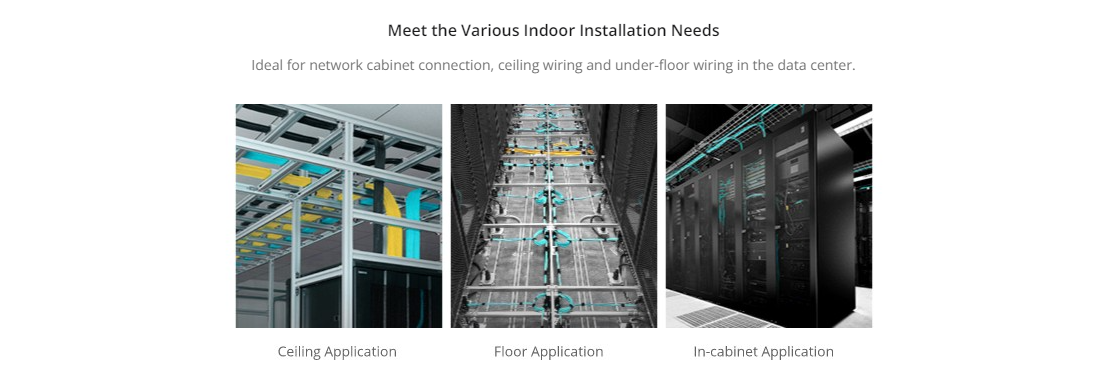

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OM3 fiber patch cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.

Specification

Connector A LC UPC Duplex Connector B LC UPC Duplex
Fiber Count 2 Fiber Fiber Grade
Bend Insensitive
Fiber Mode OM3 50/125μm Wavelength 850/1300nm
Polarity A (Tx) to B (Rx) Cable Type Tight-Buffered
Cable Outside Diameter (OD) 2.0mm Cable Jacket Riser (OFNR)

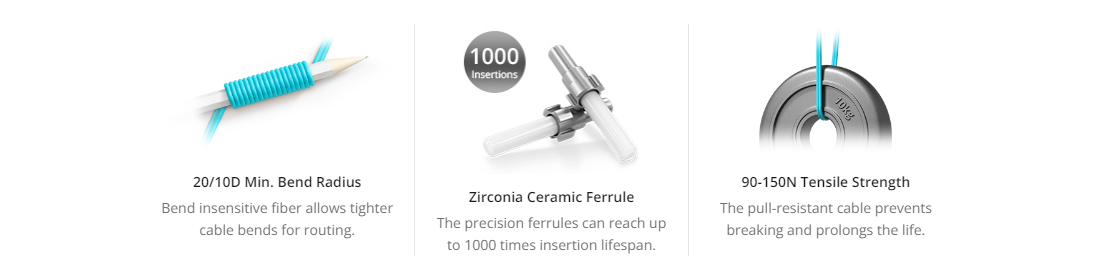

Min. Bend Radius (Optical Fiber) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Connector Durability 1000 times Tensile Strength (Long/Short Term) 90/150N
Insertion Loss ≤0.3dB Return Loss ≥30dB
Attenuation at 1310 nm 3.0dB/km Attenuation at 1550 nm 1.0dB/km
Operating Temperature -20 to 70°C (-4 to 158℉) Storage Temperature -40 to 80°C (-40 to 176℉)

Quality Testing

Quality Certification

FeatureOverview

Contact Us

Customized products are available. Please contact us for more details
