Product Features

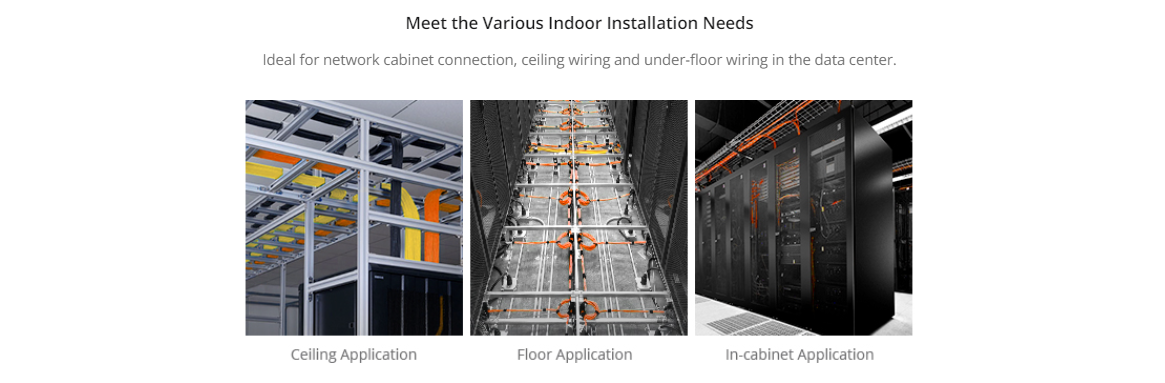

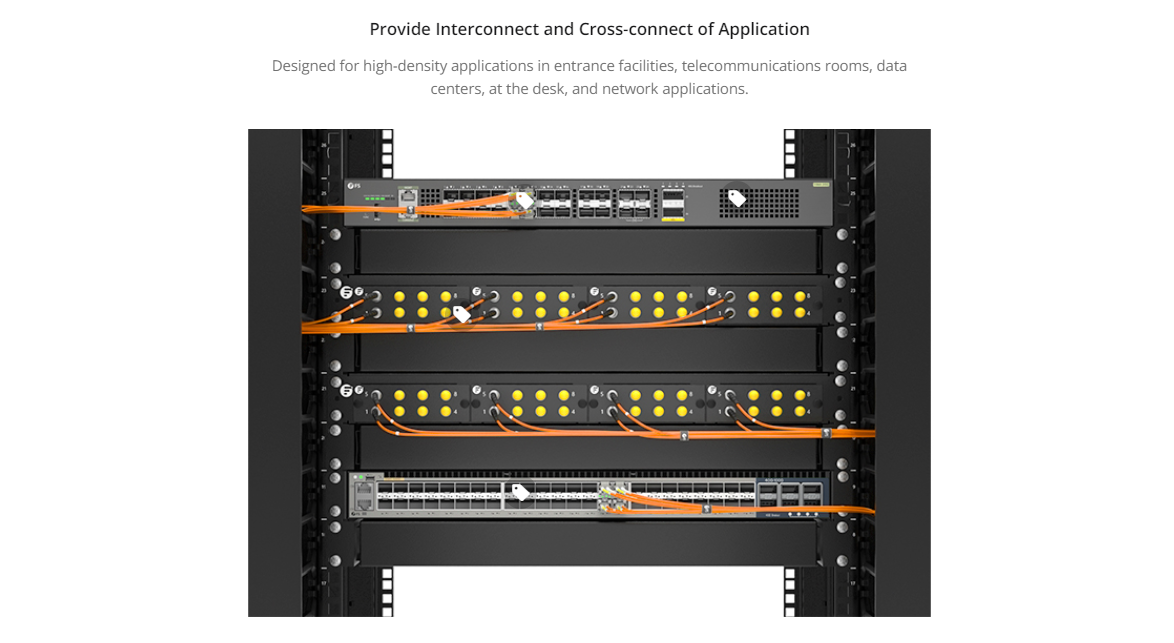

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OM1 fiber patch cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

Specification

Connector A	LC UPC Duplex	Connector B	ST UPC Duplex
Fiber Count	2 Fiber	Fiber Grade	G.651
Fiber Mode	OM1 62.5/125μm	Wavelength	850/1300nm

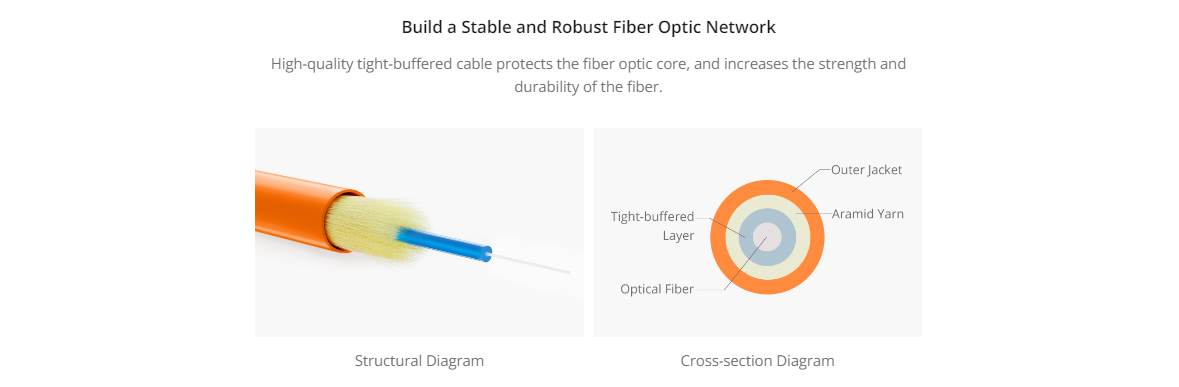

Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	Riser (OFNR)

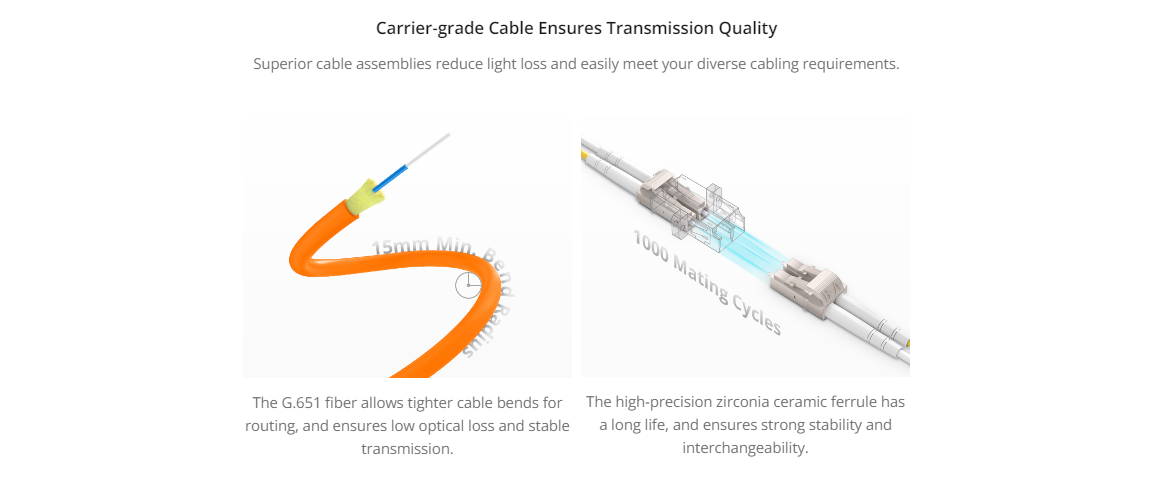

Min. Bend Radius (Optical Fiber)	15mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation at 1310 nm	3.0dB/km	Attenuation at 1550 nm	1.0dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)

Quality Testing

Quality Certification

FeatureOverview
