Product Features

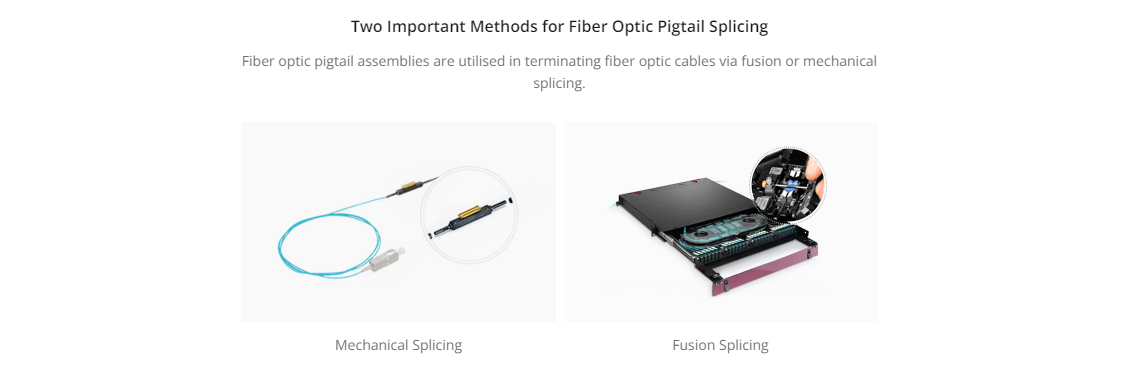

Fiber optic pigtails are designed to support fusion and mechanical splicing for fiber cabling systems. They provide a fast way to make communication devices in the field.
The OM3 bend-insensitive fiber optic pigtails have less attenuation when bent or twisted than traditional fiber optic pigtails, making installation and maintenance more efficient.

Specification

Connector A	SC UPC Simplex	Connector B	Unterminated
Fiber Count	1 Fiber	Fiber Grade	Bend Insensitive
Fiber Mode	OM3 50/125μm	Wavelength	850/1300nm

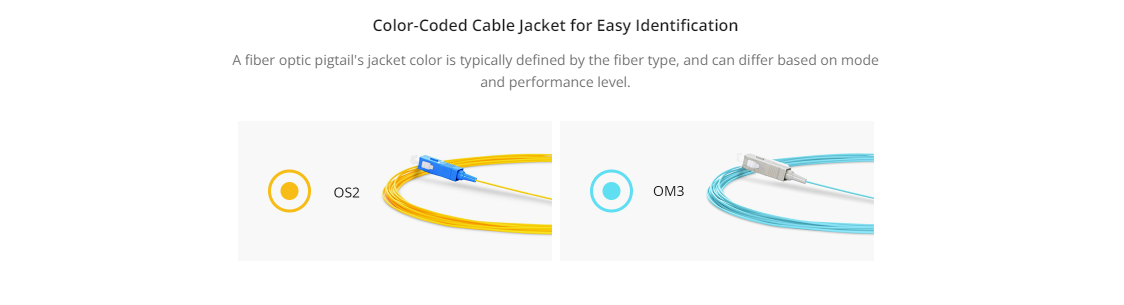

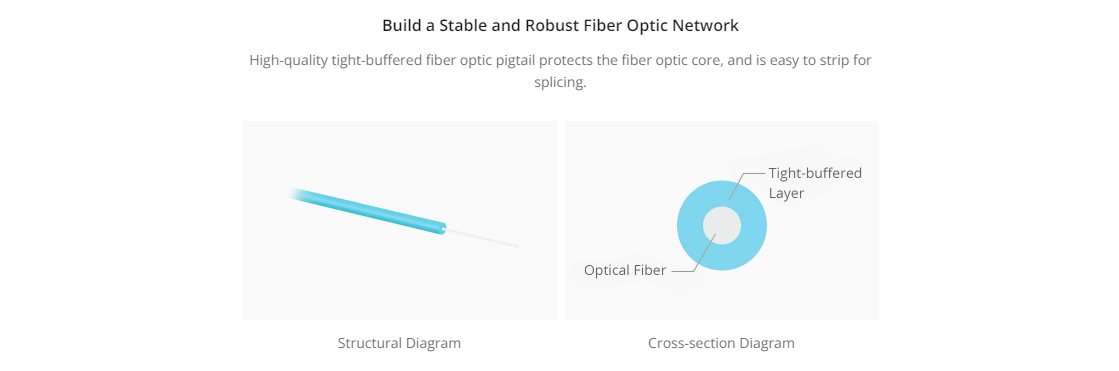

Jacket Color	Aqua	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	0.9mm	Cable Jacket	PVC (OFNR)

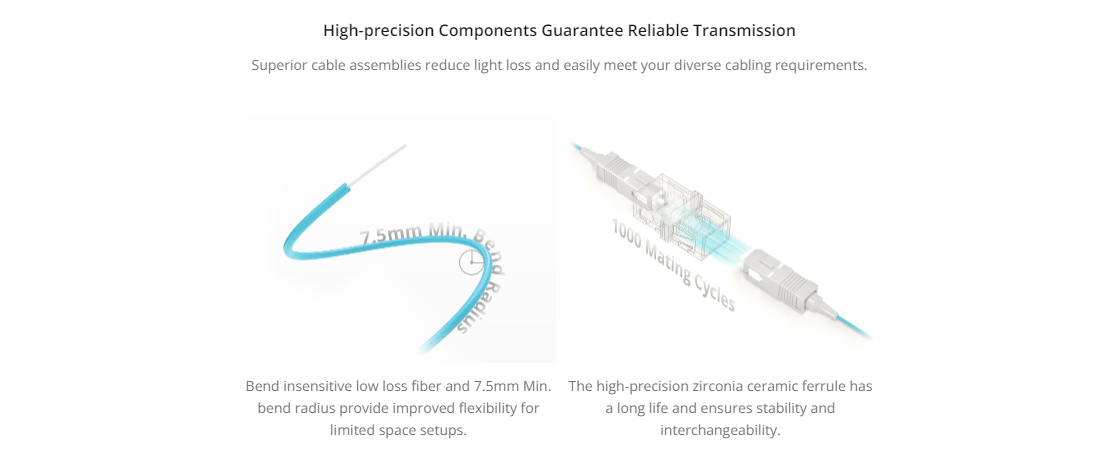

Min. Bend Radius (Optical Fiber)	7.5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Standard	RoHS Compliant
Attenuation at 1310 nm	0.30dB/km	Attenuation at 1550 nm	0.22dB/km
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Vibration	≤0.2dB	Interchangeability	≤0.2dB
Operating Temperature	-40 to 75°C (-40 to 167℉)	Storage Temperature	-45 to 85°C (-49 to 185℉)

Quality Testing

Quality Certification

FeatureOverview
