Product Features

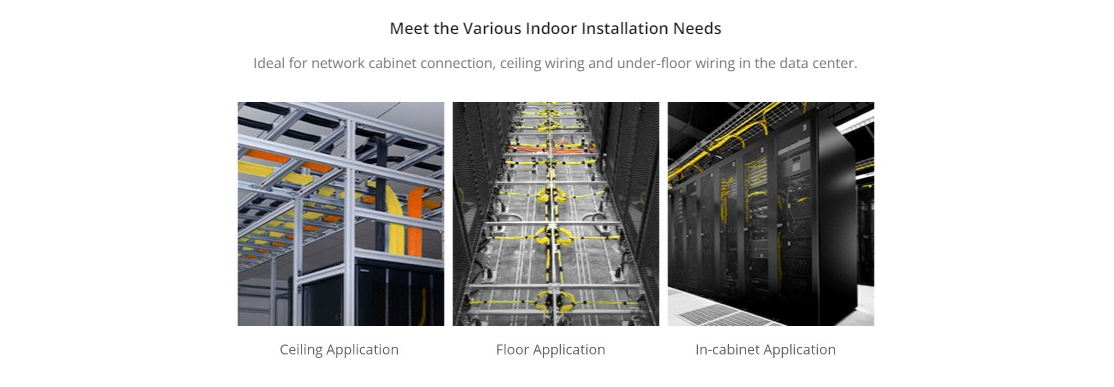

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

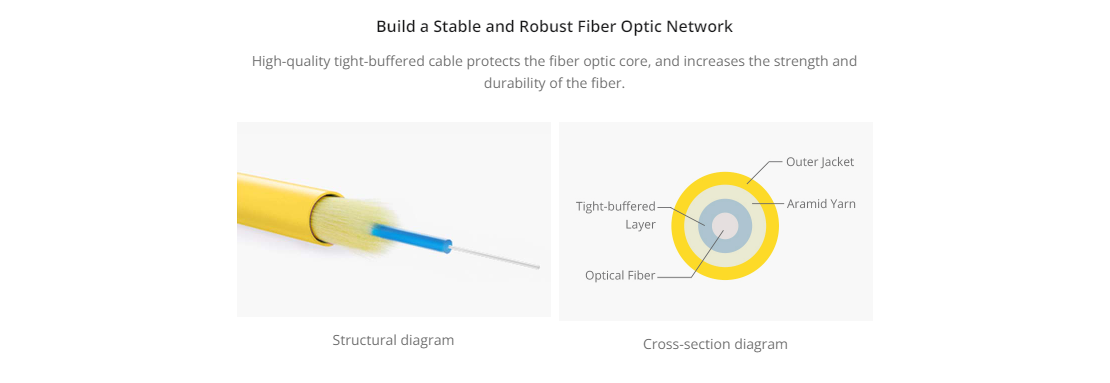

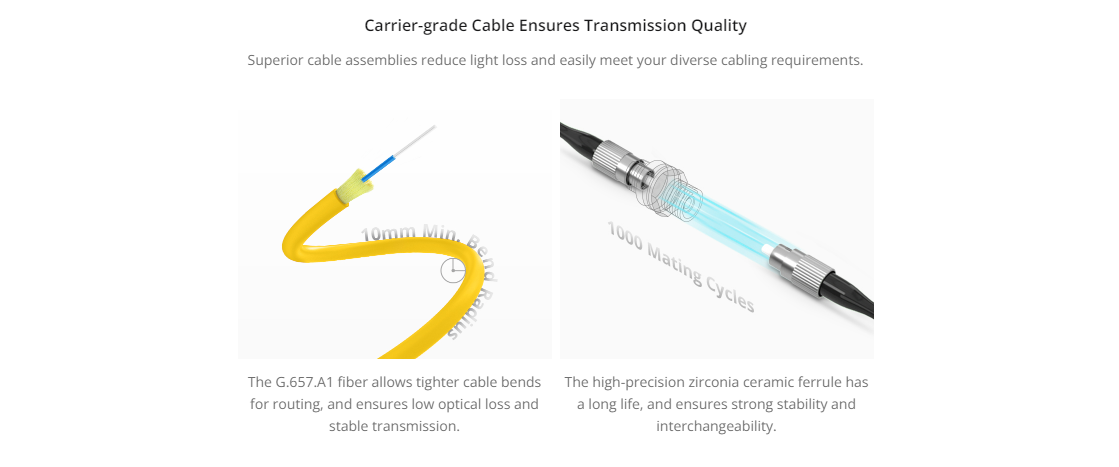

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Specification

Connector A	FC UPC Simplex	Connector B	FC UPC Simplex
Fiber Count	1 Fiber	Fiber Grade	G652D、G657A1、G657A2、G657B1、G657B2、G657B3、OM1、OM2、OM3、OM4、OM5
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliancy Status	Compliant	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	1.2mm、1.6mm、1.8mm、2.0mm、3.0mm	Cable Jacket	Riser (OFNR)
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	0.25db（≤0.2db/≤0.15db/GradeB）	Return Loss	≥60db（≥65db/≥70db）
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)

Standard End Face Inspection
Magnification time :400	SM 2.5mm and 1.25mm			MM 2.5mm and 1.25mm
Magnification time :400	Class A Level	Class B Level	Class C Level	Class A Level	Class B Level	Class C Level
A (0μm-9μm）	No Defect	No Defect	No Defect	No Defect	Scratch≤1μm,allow 1PCS	Scratch≤1μm,allow 2PCS
A (0μm-9μm）	No Defect	No Defect	No Defect	No Defect	Spot OD≤1μm,allow 2PCS	Spot OD≤2μm,allow 2PCS
B (9μm-80μm）	No Defect	Scratch≤1μm,allow 2PCS	Scratch≤1μm,allow 4PCS	Scratch≤1μm,allow 1PCS	Scratch≤2μm,allow 2PCS	Scratch≤2μm,allow 3PCS
B (9μm-80μm）	No Defect	Spot OD≤1μm,allow 2PCS	Spot OD≤2μm,allow 4PCS	Spot OD≤1μm,allow 2PCS	Spot OD≤3μm,allow 3PCS	Spot OD≤3μm,allow 4PCS
C (80μm-125μm)	Scratch≤1μm,allow 1PCS	Scratch≤2μm,allow 3PCS	Gap length (coating edge)≤5μm,allow 2PCS	Gap length (coating edge)≤3μm,allow 2PCS	Gap length (coating edge)≤5μm,allow 5PCS	Gap length (coating edge)≤5μm,allow 6PCS
	Spot OD≤1μm,allow 1PCS	Spot OD≤2μm,allow 2PCS
	Spot OD≤1μm,allow 1PCS	Gap length (coating edge) ≤2μm,allow 1PCS
D (125μm-250μm)	Gap OD ≤1μm,allow 2PCS	Gap OD ≤10μm,allow 3PCS	Gap OD ≤10μm,allow 3PCS	Gap OD ≤10μm,allow 3PCS	Gap OD ≤10μm,allow 3PCS	Gap OD ≤10μm,allow 3PCS
	No dirt,No dust,No crack	Rubber ring width≤2μm	Rubber ring width≤2μm	Rubber ring width≤2μm	Rubber ring width≤5μm	Rubber ring width≤10μm
		No dirt,No dust,No crack	No dirt,No dust,No crack	No dirt,No dust,No crack	No dirt,No dust,No crack	No dirt,No dust,No crack

Grade Performance Requirements
Item	Size	Radius of curvature(mm)	Apex offset(μm)	Fiber height(nm)	Angle error (deg)	Key (deg)
Fast connector	APC(8°)	5.5~11.5	0~45	-90~90	±0.25	±0.45
Fast connector	1.25	7.5~23	0~48	-100~50	n/a	n/a
Patch cord	2.5	10.5~23	0~48	-100~51	n/a	n/a
Patch cord	APC(8°)	5~12	0~48	-100~52	±0.3	±0.45

Grade Performance Requirements
Attenuation Grade	Attenuation random mated IEC 61300-3-34
A	≤0.07dB mean	97% of samples achieve least≤0.07dB max
B	≤0.12dB mean	97% of samples achieve least≤0.12dB max
C	≤0.25dB mean	97% of samples achieve least≤0.25dB max
D	≤0.50dB mean	97% of samples achieve least≤0.50dB max

Returm Loss Grade	Return Loss Random mated (each to each)IEC61300-3-6
Grade 1	≥60dB(mated)and≥55dB(unmated)
Grade 2	≥45dB
Grade 3	≥35dB
Grade4	≥26dB
