Product Features

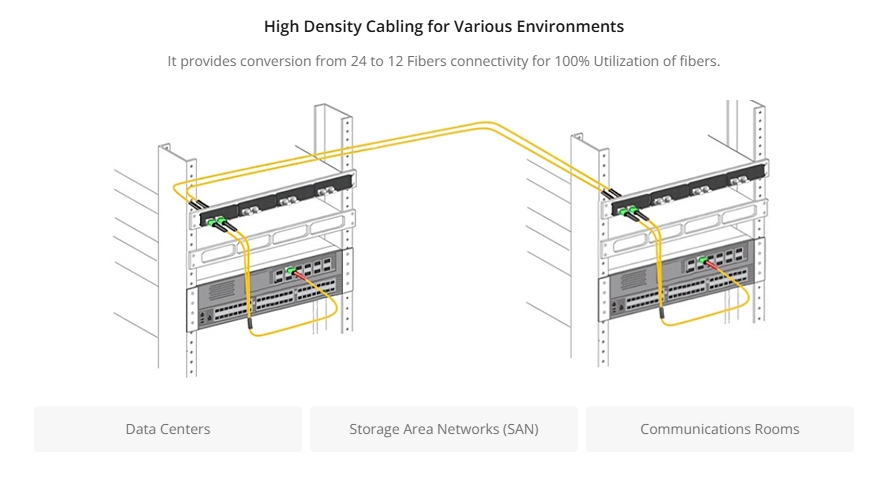

MTP® conversion cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP® harness cable, MTP® conversion cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 24-fiber cabling system.

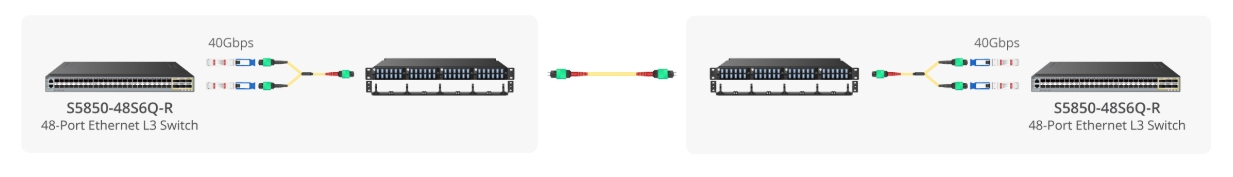

The 40/100G MTP® conversion cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate conversion cassettes, using MTP® conversion cables is a more cost-effective and lower-loss option.

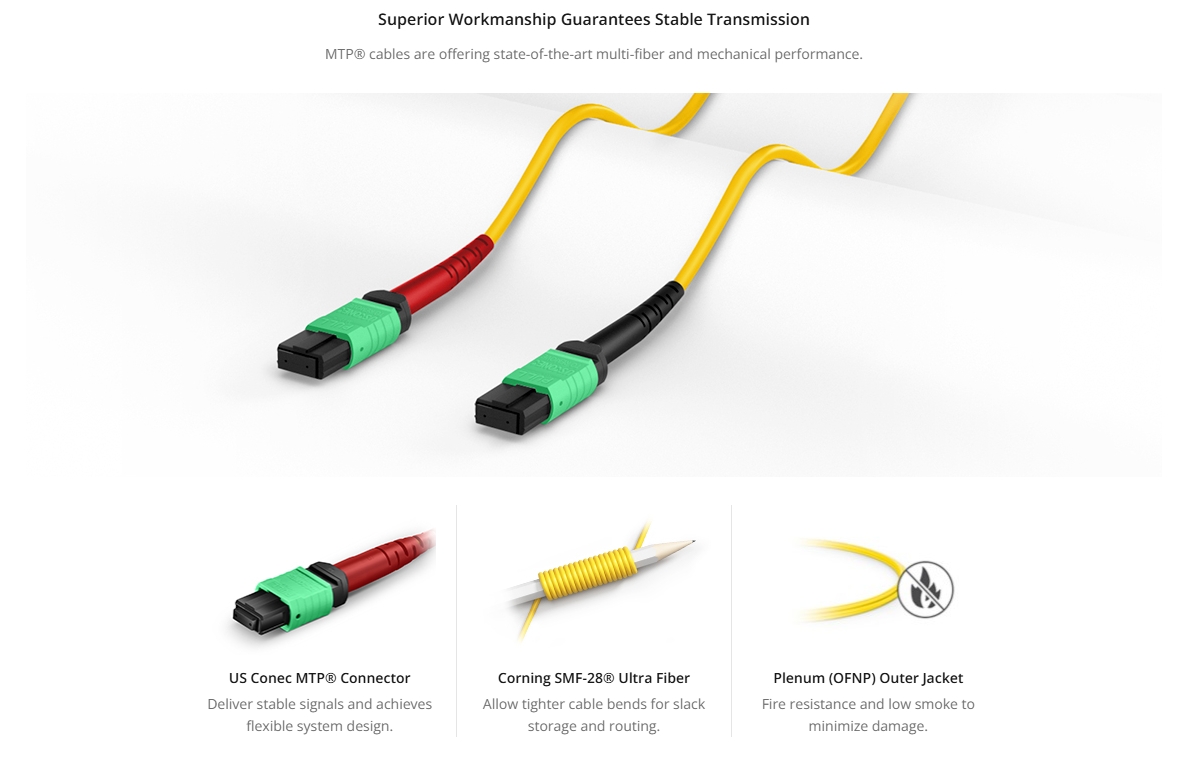

Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specification
| Fiber Connector |
US Conec MTP®
|
Gender
|
Female
|
| Fiber Mode | OS2 9/125μm | Wavelength |
1310/1550nm
|
| Glass Fiber | Corning SMF-28® | Polish Type | APC to APC |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
| Attenuation at 850nm | ≤0.32dB | Attenuation at 1300nm | ≤0.18dB/km |
| Cable Jacket | Plenum (OFNP) | Minimum Bend Radius | 10mm |
| Cable Outside Diameter (OD) | 3.0mm | Breakout Length | 0.5mm |
| Installation Tensile Load | 66N | Tensile Strength | 80/240N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -20 to 70°C (14 to 158℉) |
