24 MM MTP®/MPO Jumpers MPO-24 UPC (Female)-MPO-24 UPC (Female)
Connector Type
MTP®-24 UPC (Female) - MTP®-24 UPC (Female)
MTP®-24 APC (Female) - MTP®-24 APC (Female)
MTP®-24 UPC (Female) - MTP®-24 UPC (Female)
MPO-24 UPC (Female) - MPO-24 UPC (Female)
MTP®-24 UPC (Female) - 2 x MTP®-12 UPC (Female)
MTP®-24 APC (Female) - 2 x MTP®-12 APC (Female)
MTP®-24 UPC (Female) - 3 x MTP®-8 UPC (Female)
MTP®-24 APC (Female) - 3 x MTP®-8 APC (Female),
Fiber Type
width

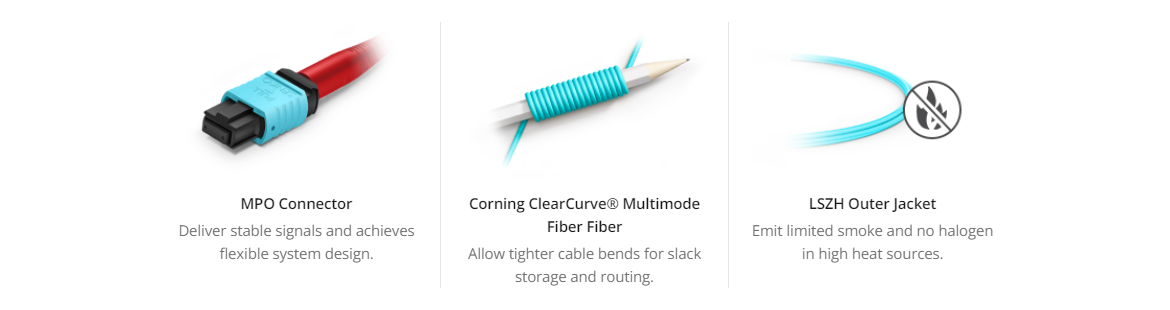

Product Features

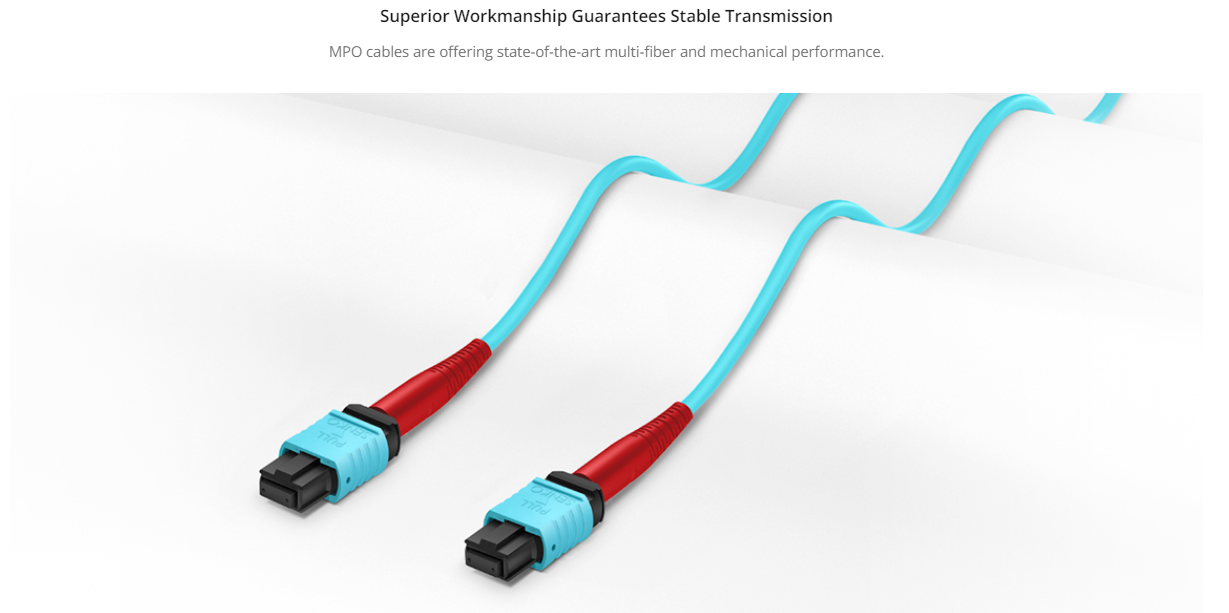

MPO jumper cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers where need space saving and reduce cable management troubles. In addition, with Corning ClearCurve® Multimode Fiber Fiber, the high performance of connection is assured.
Specification
| Connector A | MPO (Pinless) | Connector B | MPO (Pinless) |
| Polish Type | UPC to UPC | Glass Fiber |
Corning ClearCurve® Multimode Fiber
|
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 24 Fibers | Polarity |
Type A |
| Cable Outside Diameter (OD) | 3.0mm | Cable Jacket | LSZH |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 500 times | Tensile Strength | 80/240N (Long/Short Term) |
| Insertion Loss | 0.35dB Max | Return Loss | ≥20dB |
| Attenuation at 1310 nm | ≤2.3dB/km | Attenuation at 1300 nm | ≤0.6dB/km |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |

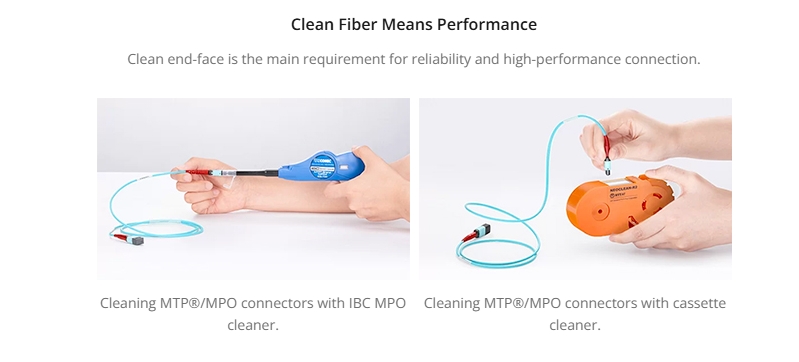

Quality Testing
Quality Certification
FeatureOverview
Contact Us
Customized products are available. Please contact us for more details
