Product Features

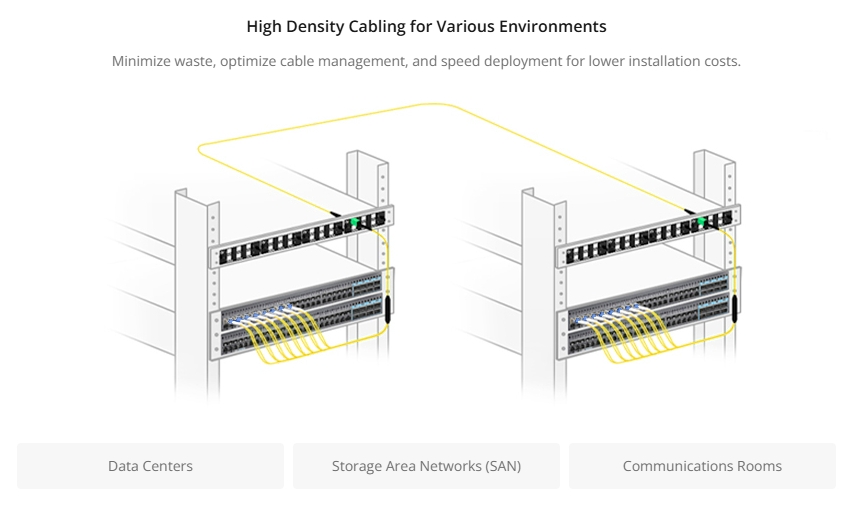

MTP® jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

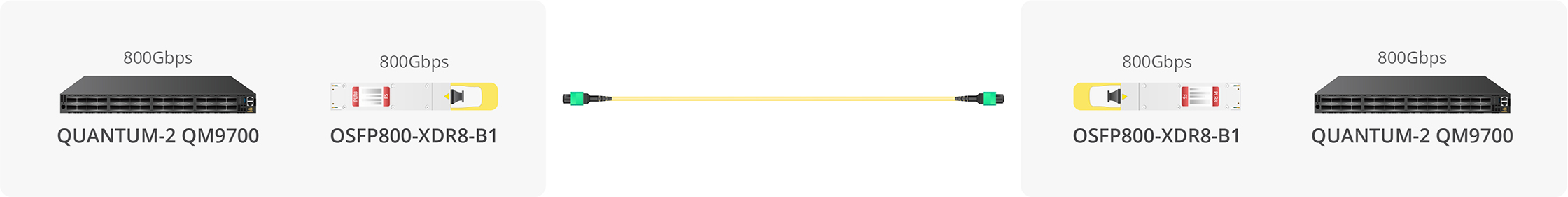

MTP®-16 is ideal for 16-fiber parallel single mode optical transceiver applications, such as 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optics connection.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
Specification
| Connector A | US Conec MTP®-16 Female (Pinless) with Offset Key | Connector B | US Conec MTP®-16 Female (Pinless) with Offset Key |
| Polish Type | APC to APC | Glass Fiber |

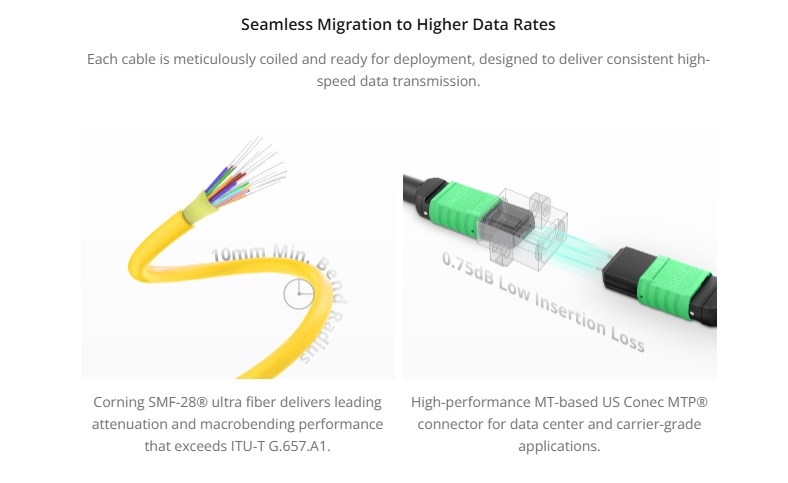

Corning SMF-28® Ultra Fiber
|
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |

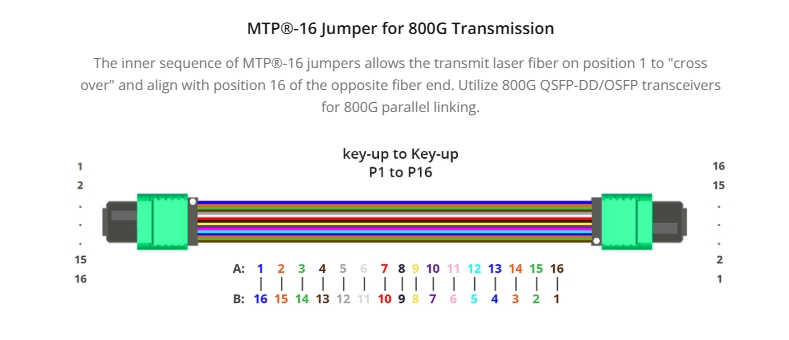

| Fiber Count | 16 Fibers | Polarity |
Crossover |

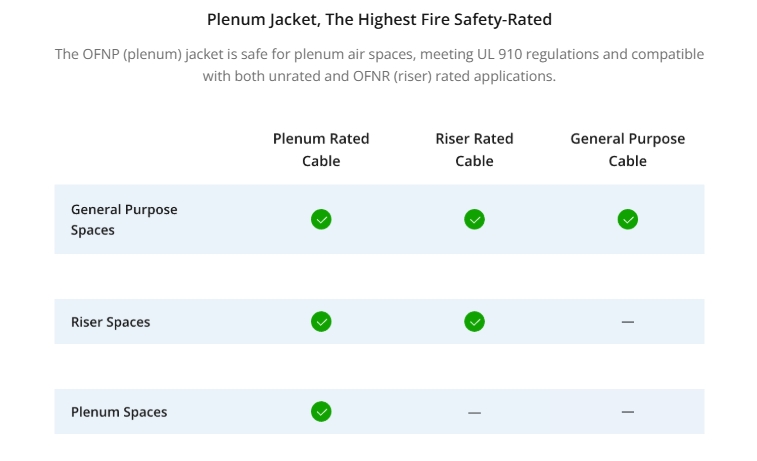

| Cable Outside Diameter (OD) | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D(Dynamic/Static) |
| Connector Durability | 500 times | Tensile Strength | 80/240N (Long/Short Term) |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
| Attenuation at 1310 nm | ≤0.32dB/km | Attenuation at 1300 nm | ≤0.18dB/km |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
