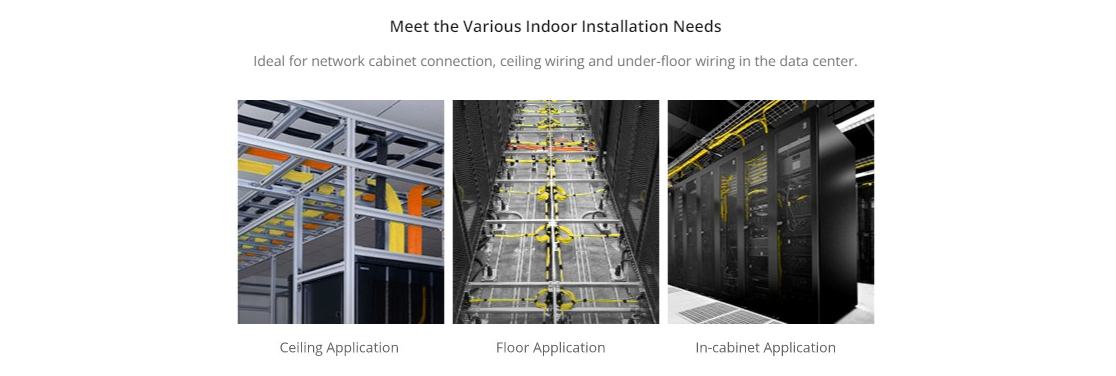

Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.

This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Specification

Connector A	SC APC Duplex	Connector B	SC APC Duplex
Fiber Count	2 Fiber	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm

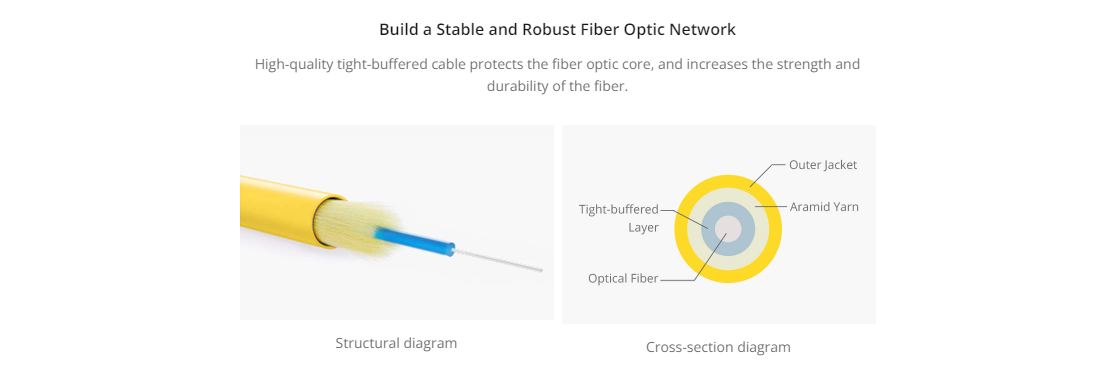

Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Cable Outside Diameter (OD)	2.0mm	Cable Jacket	Riser (OFNR)

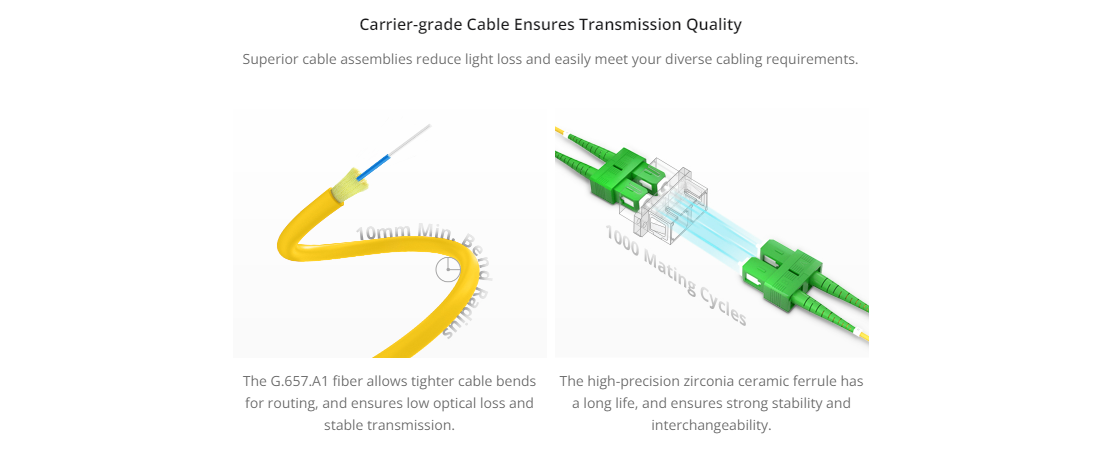

Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation at 1310 nm	0.36dB/km	Attenuation at 1550 nm	0.22dB/km
Operating Temperature	-20 to 70°C (-4 to 158℉)	Storage Temperature	-40 to 80°C (-40 to 176℉)
