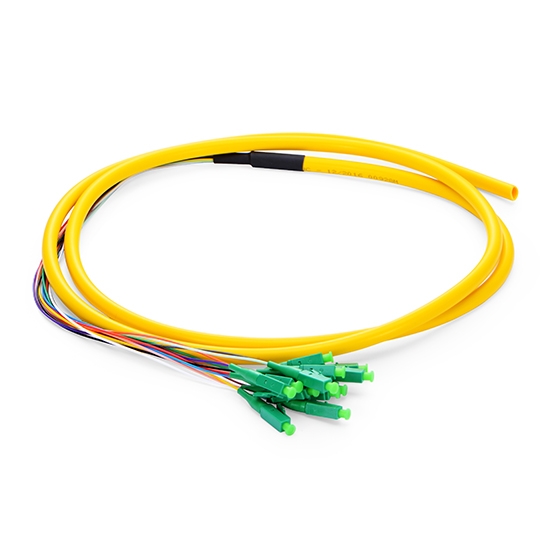

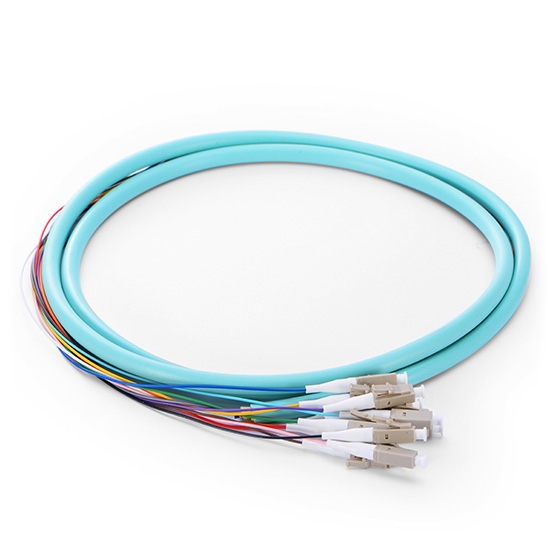

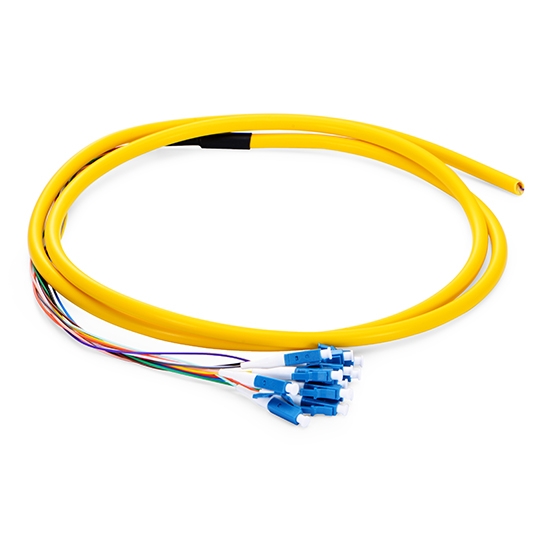

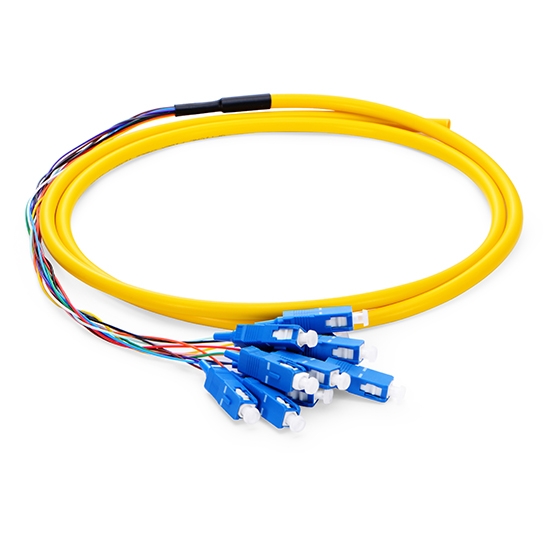

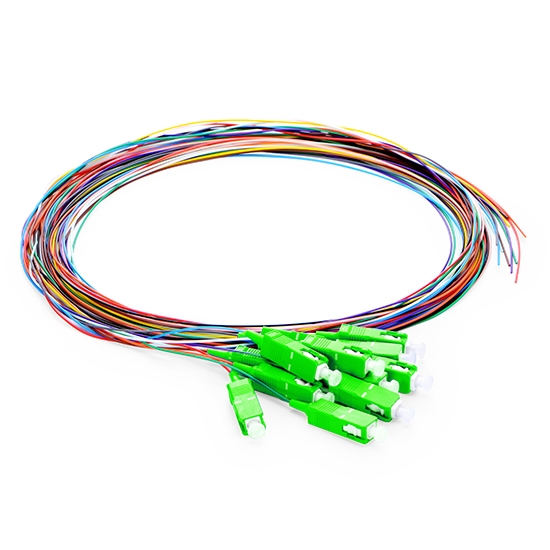

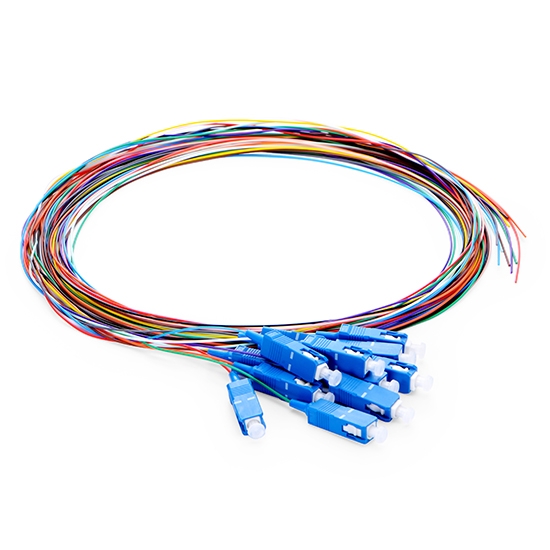

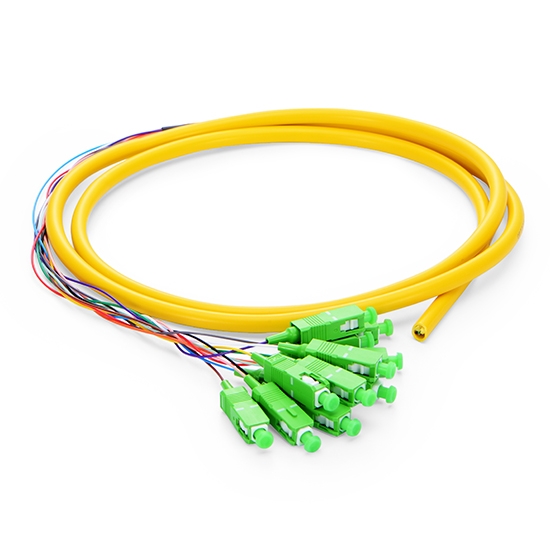

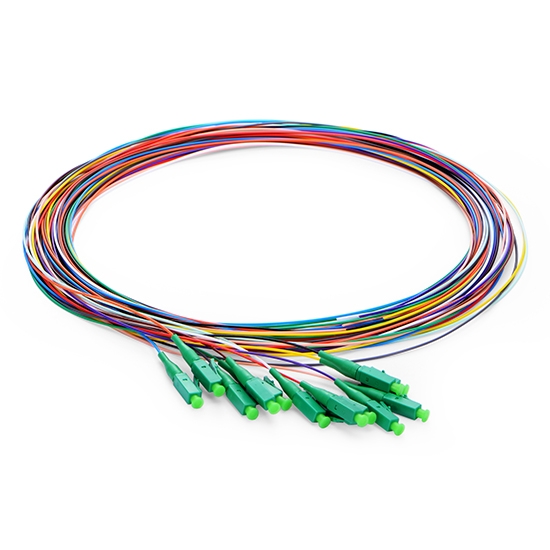

12 SM/MM Fiber Pigtails SC/APC-
Fiber Type
width
Product Features

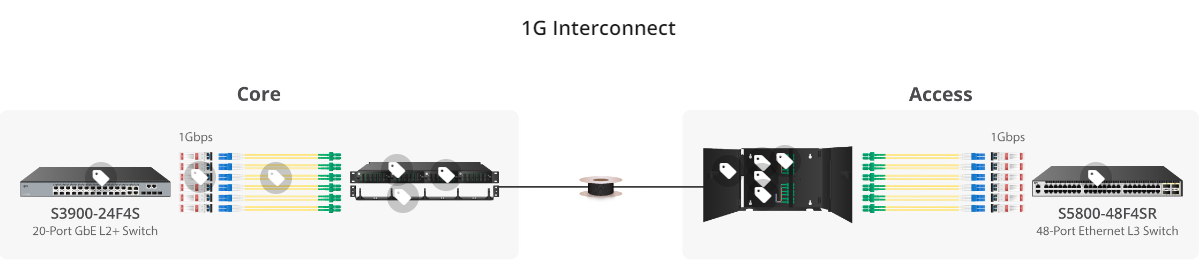

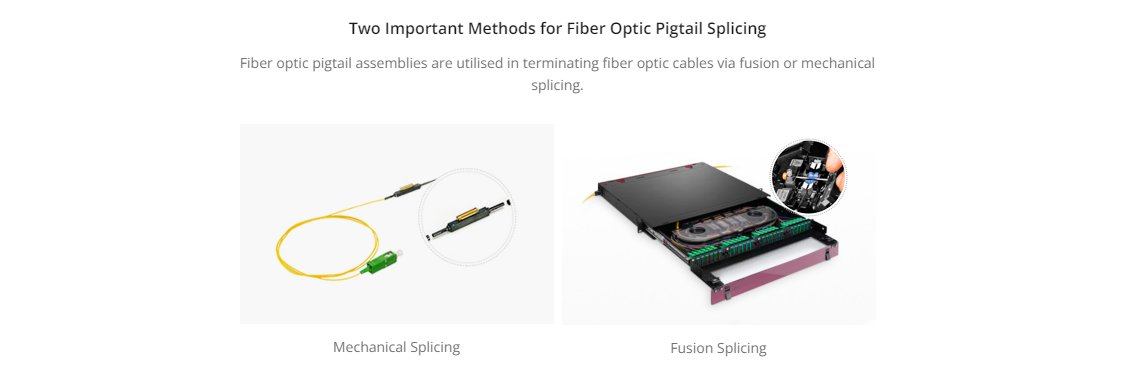

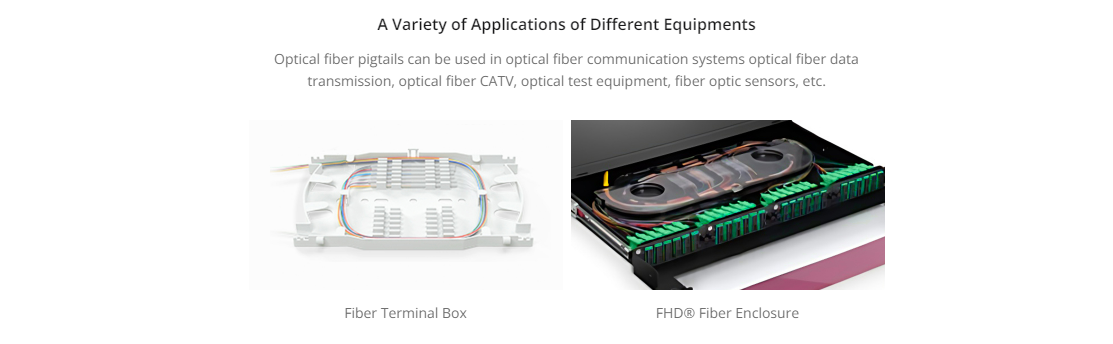

12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks.
The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.
Specification
| Connector A | SC APC Simplex | Connector B | Unterminated |
| Fiber Count | 12 Fiber | Fiber Grade | G.657.A1 |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |

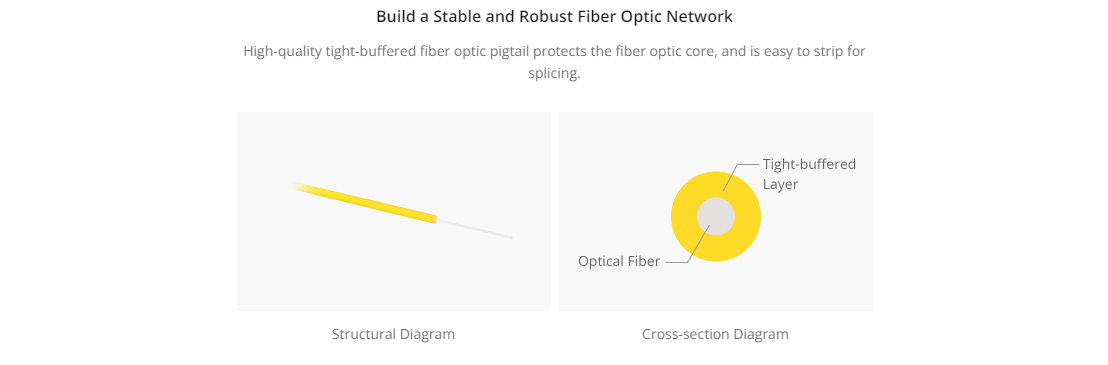

| Jacket Color | 12-Color | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 0.9mm | Cable Jacket | PVC (OFNR) |

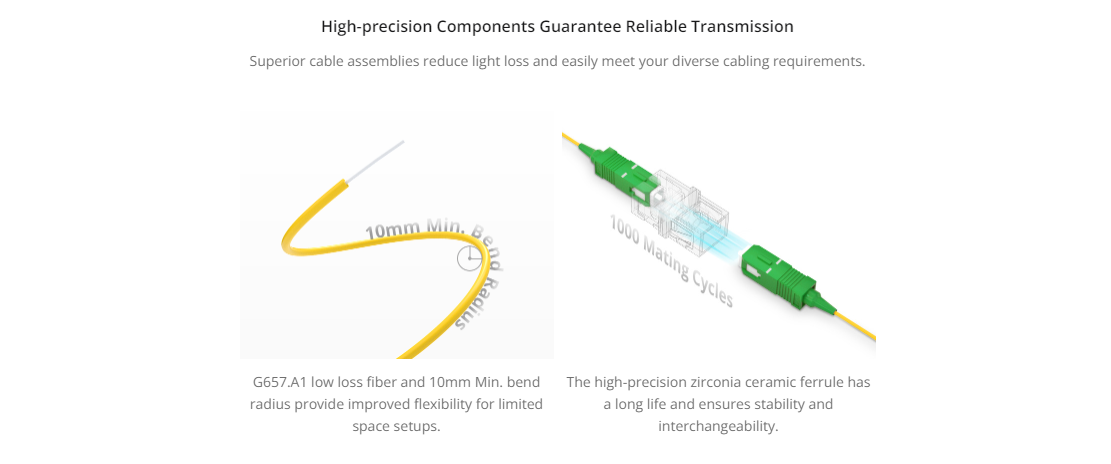

| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Standard | RoHS Compliant |
| Attenuation at 1310 nm | 0.36dB/km | Attenuation at 1550 nm | 0.22dB/km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Vibration |
≤0.2dB | Interchangeability |
≤0.2dB
|
| Operating Temperature | -40 to 75°C (-40 to 167℉) | Storage Temperature | -45 to 85°C (-49 to 185℉) |
Quality Testing
Quality Certification
FeatureOverview
Contact Us
Customized products are available. Please contact us for more details
